Merlin 32

(C) 2011-2021 by Antoine VIGNAU and Olivier ZARDINI

> What is Merlin 32 ?

Merlin 32 is a multi-pass Cross Assembler running under Windows, Linux and Mac OS X targeting 8 bit processors in the 6502 series (such as 6502 and 65c02) and the 16 bit 65c816 processor.

It is compatible with Glen Bredon's Merlin 16+ syntax, including support for Macros, Pre-processor,  Logical Expressions, Conditional Operations, Variables, Loops, Local Labels...

It can build fixed position object code or relocatable
executables (OMF v2.1) as we can find on 16 bits Apple IIgs operating systems like Prodos 16 or GS/OS (S16, Exe, CDA, NDA, FST, PIF, Library, Tool...).

Merlin 32
is part of the Brutal Deluxe's Cross Development Tools Project, a full set of utilities available on Windows (and other) platforms to enable the creation of new Apple IIgs software : 65c816 Assembler, 65c816 Disassembler, 65c816 Simulator, Graphic File Converter, Resource Catcher...


> About Merlin 32

The idea behind the creation of Merlin 32 was not to re-build a Merlin 16+ clone on a modern computer like a PC running Windows. Merlin 16+ is a great software including a full screen Text Editor, an 6502 / 65c02 / 65c816 Assembler, a Linker (including OMF support for Apple IIgs executable), a set of Disk Utilities (copy files, delete files, rename files...), a Disassembler (Sourceror) and much more. But Merlin 16+ is running on a single-process machine (the Apple IIgs) and this is now outdated. You can only perform one task after the other and there is no way to read / edit several source files at the same time (you have to save / close the first file before opening the other one). The editor, tailor made for assembly language editing, is limited to 24 lines and 80 columns, in 2 colors. You have to quit the editing of a source code to run it. And if it crash, you have to restart the operating system and restart everything (starting Merlin 16+, loading the source files...). Because of the Apple IIgs limitations, Merlin 16+ is limited (a source file can't be larger than 64 KB). There is no way to extend it while it is running inside an Apple IIgs and there is no guarantee you are not going to crash the system while you are trying to execute your code (no memory protection due to 65c816 architecture).

It was time to provide a way to continue the Apple IIgs programming with modern tools, on a modern computer. Everyone has its own habits, so there was no need to clone the Full Text Editor. There are many very good IDE that can be used to write 65c816 source code (Eclipse, Visual Studio, ...). You can also use your favorite Text editor (Emacs, PSPad, UltraEdit...) where several files can be edited together (you can copy / paste from one to the other, split the screen to see several files on the screen at the same time) and the syntax highlighting helps you to read the code (one color per category of items). You can take advantage of the screen resolution (a 23" screen provides a text editor of 55 lines and 230 columns !) and you can keep the source file opened in the editor while you are assembling / linking the program in another window and there is no risk anymore to crash the system while trying to execute the program in the emulator (or in a real Apple IIgs). The speed, even if it is not the core argument for a cross assembler, lets you assemble large projects in few seconds, instead of minutes (if not hours) on a real Apple IIgs. All the data exchanges are simplified. You can copy / paste source code from a Web Page or a text file and use it directly on your text editor. No need any more to convert the file into a valid Merlin 16+ format (high bit set to 1) before moving it to a disk image and use it under Merlin 16+. Because the source files are now stored on your modern computer as standard text files, you can use Source Control utilities like SVN to share your sources, backup them and  check for modifications using revision tool.

With Merlin 32, we provide the assembler and the linker to turn the source code (6502 / 65c02  / 65c816)  as a binary object (fixed position or relocatable with OMF support). All the edit job has to be done outside (with the text editor). You can assemble and link from a command window or you can use you IDE to associate the assembling syntax to a button. You probably have to work with CADIUS, another cross-development utility, to perform some basic tasks like indenting the source code (in the assembler style) or transferring the output of the assembly process (object code) or the source code into an Apple II disk image (.2mg, .po...).

There are already many cross-assemblers running on Windows capable to assemble 65c816 source code (xa, wla dxxasmmads...). Most of them were used to assemble source code targeting the Super Nintendo system (using a 65c816 like the Apple IIgs) or used as extension of 6502 cross assemblers dedicated to Commodore 64 or Atari XL computers. They could be used to assemble 65c816 code for the Apple IIgs but at least two major features are always missing :
- The capability to assemble source code using Merlin 16+ syntax (directives, macro, expressions, variables...)
- The capability to build relocated object code using OMF format (Apple IIgs 16 bit executables)

Merlin 16+ was one of the two most popular assemblers at the time for the Apple IIgs (the other one was Orca M) and many source codes are written using Merlin 16+ syntax (like our tools & games). We do not have to be compatible with Merlin 16+ syntax just to be able to re-assemble old files. We could have done a source converter to solve that issue. We have to be compatible with Merlin 16+ syntax because we have to make sure that the source code used into Merlin 32 on our PC running Windows could be sent back to the Apple IIgs to be also assembled with Merlin 16+. Even if we do 90% of the job with a cross-assembler, there are always few things that requires an Apple IIgs and its development toolset to build some parts like the Resource ones (menu, icon, about...). We don't say that Merlin 32 is going to replace Merlin 16+ and all the terrific development tools that already exist on the Apple IIgs platform. We say that we can speed up the process of writing code by using 90% of the time the cross assembler and 10% of the time the native Apple IIgs tools like Merlin 16+, Genesys, Iconed, GS Bug... With OMFAnalyzer tool, you can compare the output of Merlin 16+ and the output of Merlin 32 to ensure they both have generated the same object code (fixed address or relocatable) from the same source code.

The capability to build valid OMF relocatable executable files is something that the Super Nintendo cross-assemblers can't provide. The Apple IIgs is the most advanced software environment using the 65c816 processor and because of its operating system, it required a shared memory system capable to run several programs together in the same memory space. This implies memory management tools, dynamic loading of files, relocatable code, etc. At the opposite, the Super Nintendo games code run in ROM and don't have to deal with dynamic allocation or relocatable code.

Due to memory constraints, Merlin 16+ has some internal limitations :

- a Source File can't be larger to 64 KB
- a Source Line can't be larger than 255 characters
- a Label can't be larger than 26 characters
- the Operand part can't be larger than 80 characters
- the number of Externals is limited to 255
- Macros can be nested to a depth > 15
- Conditions
can't be nested to a depth > 8
- Symbol table is limited to 4096 symbols of length less than 12 and 2048 symbols of length 12 or over

Merlin 32
doesn't have any of these arbitrary limits. You can write your source code as you want but if you wish one day to send back the source code to the Apple IIgs and re-assemble it with Merlin 16+, check first your source code with the list above.


> Merlin 32 output

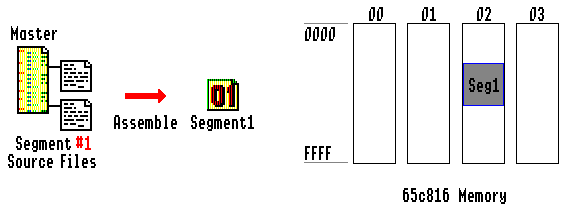

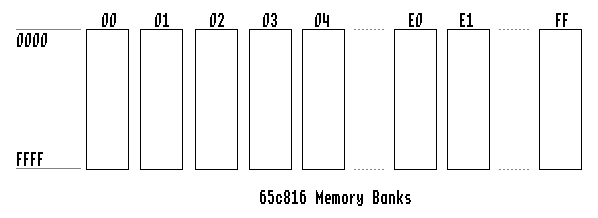

The 65c816 addressing space is 16 MB, divided into 256 memory Banks of 64 KB each (from 00 to FF). Bank 00 contains the Stack and the Direct Page.


 The PC is 16 bit, so the code execution is limited within the current bank boundary ($FFFF + 1 = $0000). If a code is bigger than 64 KB, it has to be split into small chunks of code (each of them < 64 KB) and spread over the memory banks. The connection between the chunks of code from different memory banks use LONG addressing mode instructions (LDAL, STAL, JMPL, JSL...). In the Merlin 32 documentation, we will use the word Segment to define a chunk of 65c816 object code (with a size < 64 KB) located in one memory bank (not boundary cross). A Program, depending on its size, can use one or several Segments.

Merlin 32 lets you build 5 types of Programs :

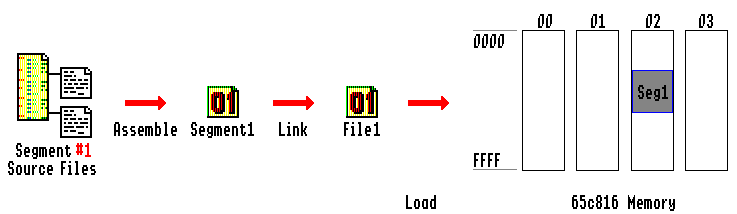

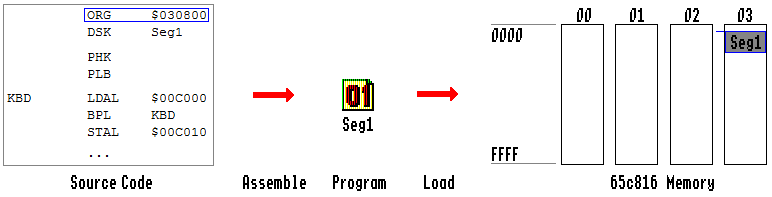

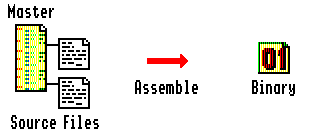

> SINGLE SEGMENT / FIXED ADDRESS

The source files are assembled as One Binary File and it has to be loaded at a fixed address in memory (defined by the ORG directive of the source file) :

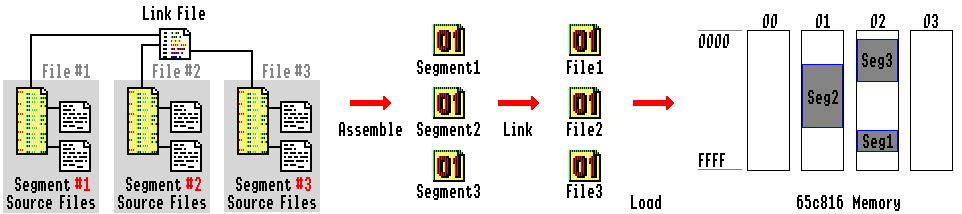

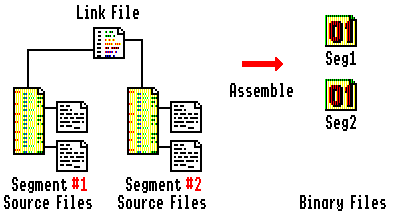

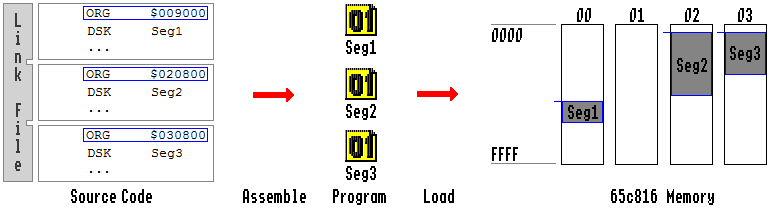

> MULTI SEGMENTS / FIXED ADDRESS

The source files (one set of files per segment) are assembled as Several Binary Files (one per segment) and they have to be loaded at a fixed address in memory (defined by the ORG directives of the source files) :

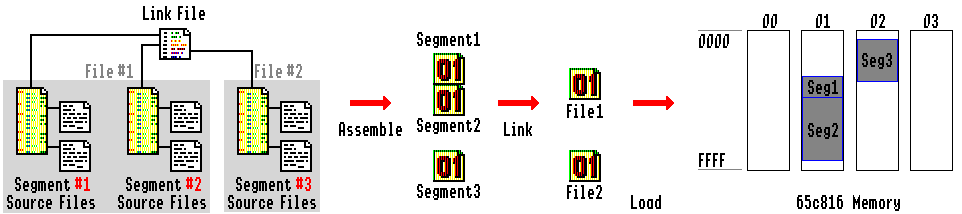

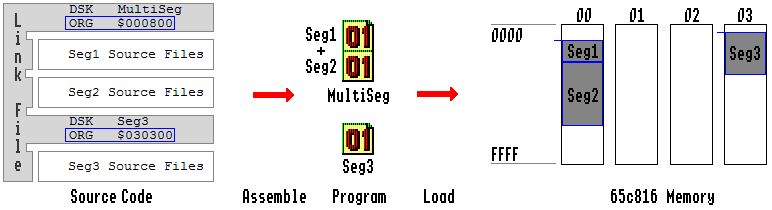

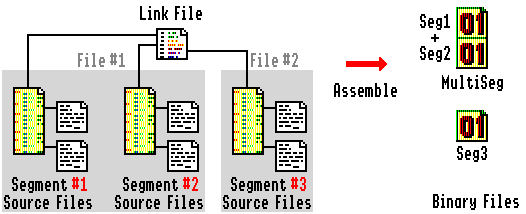

> MULTI SEGMENTS / FIXED ADDRESS /  MERGED

The source files (one set of files per segment) are assembled as One or Several Binary Files (several segments may be merged into one binary file). They have to be loaded at a fixed address in memory. If several segments are merged into one binary file, the beginning address of a segment is set as the end address + 1 of the previous segment. The Fixed Address of the First segment of the binary files are defined by the ORG directives of the Link file. The names of the binary files are defined by the DSK directives of the Link file  :

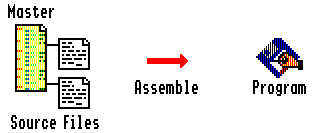

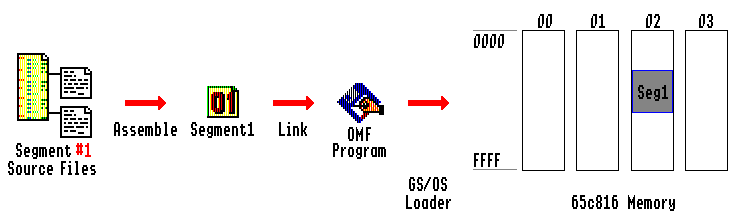

> SINGLE SEGMENT / RELOCATABLE

The source files are assembled as a Single OMF Segment file and will to be loaded by GS/OS at ANY address in memory (use of REL directive in the source file) :

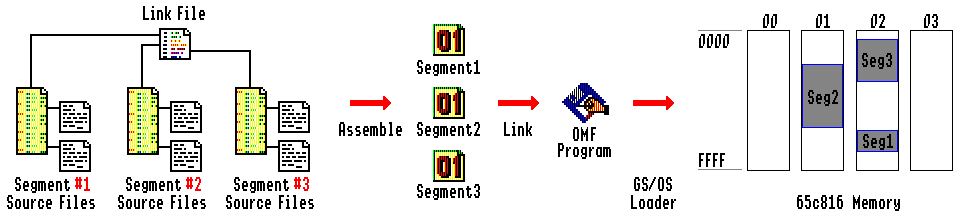

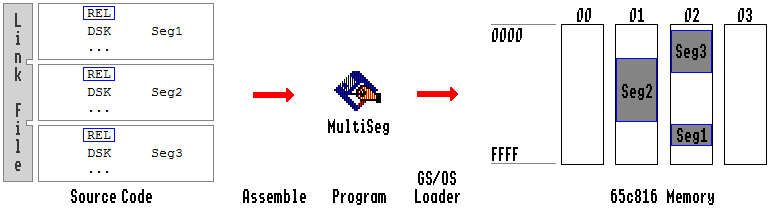

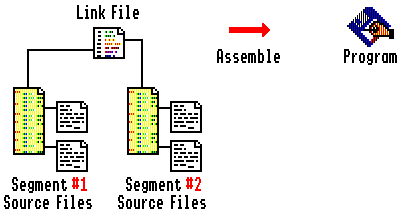

> MULTI SEGMENTS / RELOCATABLE

The source files (one set of files per segment) are assembled as a Multi-OMF Segments file and will to be loaded by GS/OS at ANY address in memory (use of REL directive in the source files) :

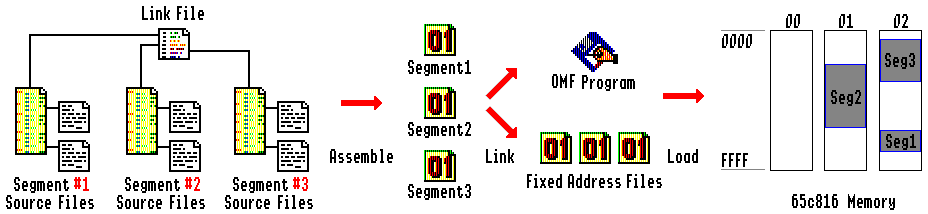

Building a multi-segments programs (fixed address or relocatable) requires a definition file named Link File. The syntax of the Link file is described below, in the sections named Building Multi-Segments Fixed-Address Files and Building Multi-Segments OMF Files.

The Fixed Address binary files can be used in any system using a 65c816 processor like the Apple IIgs, the SNES, the Commodore PET 65816 CPU card, the CS/A 65816 CPU board, the CMD SuperCPU...

The Relocatable Programs can only be used on an Apple IIgs running GS/OS. The details about OMF Files data structure (Header + Object Code + Relocation Dictionary)  can be found in the Apple IIgs GS/OS Reference book, Appendix F : Object Module Format version 2.1. You can DUMP / COMPARE OMF Files using our  OMFAnalyzer Tool.


> Command List


If you do not provide any parameter on the command line, Merlin32 displays a quick reminder of the required parameters :

C:\AppleIIgs>Merlin32.exe
Merlin32.exe v 1.0 (c) Brutal Deluxe 2011-2021

   Usage :
Merlin32.exe  [-V]  <macro_folder_path>  <source_file_path>.

    Syntax
Merlin32.exe  [-V]  <macro_folder_path>  <source_file_path>

    Example
Merlin32.exe  -V  c:\AppleIIgs\Merlin\Library  c:\AppleIIgs\Source\Cogito\Cogito.s

Here are the parameters description :
        - The first parameter -V (Verbose) is optional. If set, it builds a text file containing the output of the assembly process
        - The second parameter
(<macro_folder_path>)is the path of the Folder containing all Macro definition files (*.Macs.s)
        - The third parameter
(<source_file_path>) is the path of the Master source file (or the Link file) to be assembled

Few remarks about the parameters required on the Command Line and the software behavior :
        - If the Windows File or folder paths contains Space characters, quote the path to avoid conflicts (Merlin32.exe -V "c:\Users and Settings\Merlin\Library"  c:\Source\Cogito\Cogito.s).
        - Any error occurring during the execution of the assembly process is immediately displayed on the screen.
        - If you are transferring Source files or Macro files from a disk image or FTP server, make sure you transfer the file as a text file.

      - If you are transferring Merlin source file (*.s) from a disk image, you may have to clear the high bit. You can use Cadius for that job (Cadius.exe CLEARHIGHBIT  <source_file_path>).
        - If you are opening Merlin source file (*.s) from a text file or by getting the code by a copy / paste from a web site, you may have to indent the source to make it easier to read with a Text editor on Windows. You can use Cadius for that job (Cadius.exe INDENT  <source_file_path>).

During the execution of the process, a progression status is displayed on the screen :

C:\AppleIIgs\Merlin\>Merlin32.exe -V C:\AppleIIgs\Merlin\Library C:\AppleIIgs\Source\Cogito\Cogito.s
Merlin32.exe v 1.0, (c) Brutal Deluxe 2011-2021
  + Assemble project files...
    o Loading Sources files...
        - Cogito.s
        - Cogito.Main.s
        - Cogito.Bout.s
    o Loading Macro files...
        - Int.Macs.s
        - Locator.Macs.s
        - Mem.Macs.s
        - Misc.Macs.s
        - Sound.Macs.s
        - Tool220.Macs.s
        - Util.Macs.s
    o Check for duplicated Macros...
    o Decoding lines types...
    o Process local/variable Labels...
    o Process Asterisk lines...
    o Build External table...
    o Build Equivalence table...
    o Build Variable table...
    o Process Equivalence values...
    o Replace Lup with code...
    o Replace Macros with Code...
    o Process MX directives...
    o Process Conditional directives...
    o Build Label table...
    o Check for duplicated Labels...
    o Check for unknown Source lines...
    o Check for Dum lines...
    o Compute Operand Code size...
    o Compute Operand Data size...
    o Compute Line address...
    o Build Code Line...
    o Check for Err lines...
    o Build Data Line...
    o Build Object Code...
  + Link project files...
    o Build OMF output file...
        => Creating OMF file '
C:\AppleIIgs\Source\Cogito\Cogito'
  + Create Output Text file...
     => Creating Output file '
C:\AppleIIgs\Source\Cogito\Cogito_Output.txt'

As a result, if everything went ok,  you get one binary file (fixed position object code or OMF file) and, if the -V option was enabled, a text file containing the output of the assembly process (Cogito_Output.txt) :

------+-------------------------+-------------+----+-------+------+--------------------+-------------------------------------------------------------------
 Line | # File             Line | Line Type   | MX | Reloc | Size | Address Object Code|  Source Code
------+-------------------------+-------------+----+-------+------+--------------------+-------------------------------------------------------------------
    1 |  1      Cogito.s      1 | Comment     | 11 |       |    0 | 0000               | *--------------------------*
    2 |  1      Cogito.s      2 | Comment     | 11 |       |    0 | 0000               | *                          *
    3 |  1      Cogito.s      3 | Comment     | 11 |       |    0 | 0000               | *          COGITO          *
    4 |  1      Cogito.s      4 | Comment     | 11 |       |    0 | 0000               | *                          *
    5 |  1      Cogito.s      5 | Comment     | 11 |       |    0 | 0000               | *      Brutal  Deluxe      *
    6 |  1      Cogito.s      6 | Comment     | 11 |       |    0 | 0000               | *                          *
    7 |  1      Cogito.s      7 | Comment     | 11 |       |    0 | 0000               | * Version: 2.0 du 26/08/94 *
    8 |  1      Cogito.s      8 | Comment     | 11 |       |    0 | 0000               | *--------------------------*
    9 |  1      Cogito.s      9 | Empty       | 11 |       |    0 | 0000               |
   10 |  1      Cogito.s     10 | Directive   | 00 |       |    0 | 0000               |                 mx        %00
   11 |  1      Cogito.s     11 | Empty       | 00 |       |    0 | 0000               |
   12 |  1      Cogito.s     12 | Directive   | 00 |       |    0 | 0000               |                 lst       off
   13 |  1      Cogito.s     13 | Directive   | 00 |       |    0 | 0000               |                 rel
   14 |  1      Cogito.s     14 | Directive   | 00 |       |    0 | 0000               |                 dsk       Cogito.l
   15 |  1      Cogito.s     15 | Empty       | 00 |       |    0 | 0000               |
   16 |  1      Cogito.s     16 | Directive   | 00 |       |    0 | 0000               |                 use       4/Int.Macs
   17 |  1      Cogito.s     17 | Directive   | 00 |       |    0 | 0000               |                 use       4/Locator.Macs
   18 |  1      Cogito.s     18 | Directive   | 00 |       |    0 | 0000               |                 use       4/Mem.Macs
   19 |  1      Cogito.s     19 | Directive   | 00 |       |    0 | 0000               |                 use       4/Misc.Macs
   20 |  1      Cogito.s     20 | Directive   | 00 |       |    0 | 0000               |                 use       4/Sound.Macs
   21 |  1      Cogito.s     21 | Directive   | 00 |       |    0 | 0000               |                 use       4/Tool220.Macs
   22 |  1      Cogito.s     22 | Directive   | 00 |       |    0 | 0000               |                 use       4/Util.Macs
   23 |  1      Cogito.s     23 | Empty       | 00 |       |    0 | 0000               |
   24 |  1      Cogito.s     24 | Comment     | 00 |       |    0 | 0000               | *--- Parametres Page Zero
   25 |  1      Cogito.s     25 | Empty       | 00 |       |    0 | 0000               |
   26 |  1      Cogito.s     26 | Equivalence | 00 |       |    0 | 0000               | Debut           =         $00
   27 |  1      Cogito.s     27 | Equivalence | 00 |       |    0 | 0000               | Arrivee         =         $04
   28 |  1      Cogito.s     28 | Empty       | 00 |       |    0 | 0000               |
   29 |  1      Cogito.s     29 | Equivalence | 00 |       |    0 | 0000               | proDOS          =         $e100a8
   30 |  1      Cogito.s     30 | Empty       | 00 |       |    0 | 0000               |
   31 |  1      Cogito.s     31 | Comment     | 00 |       |    0 | 0000               | *--------------------------
   32 |  1      Cogito.s     32 | Comment     | 00 |       |    0 | 0000               | * Initialisations d'entree
   33 |  1      Cogito.s     33 | Comment     | 00 |       |    0 | 0000               | *--------------------------
   34 |  1      Cogito.s     34 | Empty       | 00 |       |    0 | 0000               |
   35 |  1      Cogito.s     35 | Code        | 00 |       |    1 | 0000 : 4B          |                 phk
   36 |  1      Cogito.s     36 | Code        | 00 |       |    1 | 0001 : AB          |                 plb
   37 |  1      Cogito.s     37 | Empty       | 00 |       |    0 | 0002               |
   38 |  1      Cogito.s     38 | Macro       | 00 |       |    0 | 0002               |                 _TLStartUp
   40 |  1      Cogito.s     38 | Code        | 00 |       |    3 | 0002 : A2 01 02    |                 LDX       #$201                ; load tool call #
   41 |  1      Cogito.s     38 | Code        | 00 |       |    4 | 0005 : 22 00 00 E1 |                 JSL       $E10000              ; go to dispatcher
   42 |  1      Cogito.s     39 | Code        | 00 |       |    1 | 0009 : 48          |                 pha
   43 |  1      Cogito.s     40 | Macro       | 00 |       |    0 | 000A               |                 _MMStartUp
   45 |  1      Cogito.s     40 | Code        | 00 |       |    3 | 000A : A2 02 02    |                 LDX       #$202                ; load tool call #
   46 |  1      Cogito.s     40 | Code        | 00 |       |    4 | 000D : 22 00 00 E1 |                 JSL       $E10000              ; go to dispatcher
   47 |  1      Cogito.s     41 | Code        | 00 |       |    1 | 0011 : 68          |                 pla
   48 |  1      Cogito.s     42 | Code        | 00 | 2     |    3 | 0012 : 8D D8 AD    |                 sta       myID
   49 |  1      Cogito.s     43 | Macro       | 00 |       |    0 | 0015               |                 _MTStartUp
   51 |  1      Cogito.s     43 | Code        | 00 |       |    3 | 0015 : A2 03 02    |                 LDX       #$203                ; load tool call #
   52 |  1      Cogito.s     43 | Code        | 00 |       |    4 | 0018 : 22 00 00 E1 |                 JSL       $E10000              ; go to dispatcher
   53 |  1      Cogito.s     44 | Macro       | 00 |       |    0 | 001C               |                 _IMStartUp
   55 |  1      Cogito.s     44 | Code        | 00 |       |    3 | 001C : A2 0B 02    |                 LDX       #$20B                ; load tool call #
   56 |  1      Cogito.s     44 | Code        | 00 |       |    4 | 001F : 22 00 00 E1 |                 JSL       $E10000              ; go to dispatcher
   57 |  1      Cogito.s     45 | Empty       | 00 |       |    0 | 0023               |
   58 |  1      Cogito.s     46 | Code        | 10 |       |    2 | 0023 : E2 20       |                 sep       #$20
   59 |  1      Cogito.s     47 | Code        | 10 |       |    4 | 0025 : AF 22 C0 E0 |                 ldal      $e0c022
...

The output file lets you check the pre-processor job (replace Macros with code, expand Lups, resolve local labels, compute expressions...), the assembler job (addressing mode, A X Y registers size, object code, ...) and the linker job (multi-org directives, addresses to be patched for relocated code, ...).

Here is a quick explanation for the columns available in the output file :
- Line : Global line number (1 to N).
- # File    Line : Source file number (
>1 if several source files are involved using PUT directive) and Local source file line number.
- Line Type : Type of source code line : Empty, Comment, Directive, Equivalence, Macro, Code or Data
- MX : Size for M (Accumulator) and X (X and Y Registers).This is helpful to understand if Merlin 32 is assembling 8 bit or 16 bit code. MX values are usually modified by MX directive or SEP / REP opcode.
- Reloc : For relocatable code, you will find here the number of bytes to be relocated and the shift operation performed on the address (>> 8, >>16...). If the label is EXTernal to the segment, the letter E is added in the column.
- Size : Number of bytes used to encode this line.
- Address   Object Code : Address (16 bit) of the line. If the ORG directive is used, the first address starts there. If the code is relocatable (REL directive), the first address is $0000. The bytes used to encode this line follow the address. We don't put more than 4 bytes / line.
- Source Code : The source code of the line has been processed (since we got it from source file) : Macros have been expanded, Loops has been exploded, local Labels have been replaced by unique names, Expressions have been resolved...

If you want to be sure that the source assembled with Merlin 32 on Windows create the same binary file than Merlin 16+ on GS/OS, you can compare the two result files with OMF Analyzer. If you are assembling a fixed position object code, use the COMPAREBIN command, if you are assembling an OMF file, use the COMPARE command.


> Merlin 32 Syntax


Because Merlin 32 uses the same syntax than Merlin 16+, the easiest way to learn about Merlin 32 syntax is probably to read documentation about Merlin 16+. You can pick up the Merlin 16+ documentation or any assembly book using Merlin 16+ syntax like Apple IIgs Machine Language for Beginners written by Roger Wagner.

The section provides information on writing assembly language programs with Merlin 32. You can skip this reminder if you are already familiar with Merlin 16+.

INDENTATION
An assembly source code is organized in 4 columns :

- LABEL :           Contains the identifier name for this line. It can be the label where to branch, the name of a new Macro, the name of a Variable...
- OPCODE :       Contains the action to be performed by the line. It can be a valid 65816 opcode, a Merlin 32 Directive, the name of a Macro to call...
- OPERAND :     Contains the parameter of the OPCODE. It can be the operand of the opcode, the Macro parameters, the value of the variable...
- COMMENT :    Starts with a
; character and contains a text explaining the Line purpose.

Merlin 32 is case sensitive for Labels, Macros, Operand values, Variables, Equates... You can write either LDA or Lda for opcode but PushLong and pushlong are not the same Macro !

We can use blank characters (SPACEs or TABs) to define the beginning / end of a column.

LABELOPCODEOPERAND COMMENT


proDOS








memERR

memERR1






memERR2

proKill
mx
use

=

phk
plb

clc
xce
rep

bcs
rts
PushWord
PushLong
PushLong
PushLong
PushLong
_TLTextMount
pla
jmp

dw
adrl
%00
4/Int.Macs

$e100a8






#$30

memERR1

#0
#memSTR1
#memSTR2
#proSTR3
#proSTR4


initOFF

1
pTEMP












; Memory Error











; Pathname

Do not bother with indentation when you write your code in a Windows Text editor. Just add few Spaces or Tabs to separate columns. Once the lines have been written (or copy / pasted from another location), use CADIUS to indent automatically your source code :
CADIUS.exe  INDENT  <source_file_path>

After processing, the code is easier to read :

 SOURIS LDA BOUT ; ANCIEN BOUT=NOUVEAU BOUT
  STA BOUT1

  SOURIS0 JSR SLECT ; LECTURE SOURIS
  CPY #$FFFF
  BEQ SECR ; DONNEES NON DISPONIBLES

  SOURIS1 LDA A1 ; A1 POSITION ACTUELLE
  STA AP ; AP ANCIENNE POSITION
  LDA POSX
  LSR
  STA SOURIS2+1
  LDA POSY
  ASL
  TAX
  LDA TABLE,X
  CLC
  SOURIS2 ADC #$0000 ; CALCUL DE A1 (160*POSY+POSX)
 SOURIS      LDA   BOUT          ; ANCIEN BOUT=NOUVEAU BOUT
             STA   BOUT1

  SOURIS0     JSR   SLECT         ; LECTURE SOURIS
             CPY   #$FFFF
             BEQ   SECR          ; DONNEES NON DISPONIBLES

  SOURIS1     LDA   A1            ; A1 POSITION ACTUELLE
             STA   AP            ; AP ANCIENNE POSITION
             LDA   POSX
             LSR
             STA   SOURIS2+1
             LDA   POSY
             ASL
             TAX
             LDA   TABLE,X
             CLC
  SOURIS2     ADC   #$0000        ; CALCUL DE A1 (160*POSY+POSX)

Repeat the indent process as many times as you need.


COMMENT
A valid comment line starts with a * or a ; character. A comment line is never indented and does not have to enter into the LABEL / OPCODE / OPERAND / COMMENT scheme. If the line contains only blank characters like SPACEs or TABs, the line is considered as empty. If the first valid (non blank) character of the line is a ; with some blank characters before, the line is indented and the content is transferred in the COMMENT column.

*--------------------------------------------
*--  Check we have at least 512 KB available
*--------------------------------------------
; _FreeMem
                                               ; Memory Allocation
okIT2           PushLong  #0                   ; Ask for Shadowing
                PushLong  #$8000
                PushWord  myID

OPCODE
You can use all the 65c816 opcodes, with the following standard mnemonics :

ADC AND ASL
BCC BLT BCS BGE BEQ BIT BMI BNE BPL BRA BRK BRL BVC BVS
CLC CLD CLI CLV CMP COP CPX CPY
DEC DEX DEY
EOR
INC INX INY
JMP JML JSR JSL
LDA LDX LDY LSR
MVN MVP
NOP
ORA
PEA PEI PER PHA PHB PHD PHK PHP PHX PHY PLA PLB PLD PLP PLX PLY
REP ROL ROR RTI RTL RTS
SBC SEC SED SEI SEP STA STP STX STY STZ
TAX TAY TCD TCS TDC TRB TSB TSC TSX TXA TXS TXY TYA TYX
WAI WDM
XBA XCE

Opcodes modifying the Accumulator such as ASL, LSR, DEC and INC have no operand value. Write them ASL, not ASL A.

For Long addressing modes (24 bits address), you can add a L character at the end of the mnemonic :

ADCL SBCL
ANDL EORL ORAL
CMPL
LDAL STAL
JMPL

If you want to use alternate opcodes such as BGE (=BCS) or BLT (=BCC), you can easily define them as Macros.

ADDRESSING MODE
Merlin 32 handles all the 65c816 addressing modes, with the following syntax :

           ASL                 ; A          Implicit
           LDA   #$2000        ; #const     Immediate
           LDA   $C000         ; addr2      Absolute
           LDA   ($2000,X)     ; (addr2,X)  Absolute Indexed,X Indirect
           LDA   $2000,X       ; addr2,X    Absolute Indexed,X
           LDA   $2000,Y       ; addr2,Y    Absolute Indexed,Y
           LDA   ($2000)       ; (addr2)    Absolute Indirect
           LDA   [$2000]       ; [addr2]    Absolute Indirect Long
           LDAL  $E12000       ; addr3      Absolute Long
           LDAL  $E12000,X     ; addr3,X    Absolute Long Indexed,X
           LDA   $10           ; dp         Direct Page
           LDA   $10,X         ; dp,X       Direct Page Indexed,X
           LDA   $10,Y         ; dp,Y       Direct Page Indexed,Y
           LDA   ($10)         ; (dp)       Direct Page Indirect
           LDA   [$10]         ; [dp]       Direct Page Indirect Long
           LDA   ($10,X)       ; (dp,X)     Direct Page Indexed Indirect,X
           LDA   ($10),Y       ; (dp),Y     Direct Page Indirect Indexed,Y
           LDA   [$10],Y       ; [dp],Y     Direct Page Indirect Long Indexed,Y
           BEQ   LABEL         ; relative1  Program Counter Relative
           BRL   LABEL         ; relative2  Program Counter Relative Long
           LDA   ($10,S),Y     ; (sr,S),Y   Stack Relative Indirect Indexed,Y
           LDA   $10,S         ; sr,S       Stack Relative
           PEA   $1010         ; #const     Stack Immediate
           PEI   ($10)         ; (dp)       Stack Direct Page Indirect
           PER   $2000         ;
#const     Stack Program Counter Relative Long

By convention, some Opcodes like PEA or PER receive addresses (starting with $as Operand even if it should be constants (PEA $A0A0 stores at the top of the stack the constant value #$A0A0, not the value found at address $A0A0).

The purpose of the Merlin 32 syntax is to remove any ambiguity regarding what the assembly process is supposed to build as output code.

For example, such code is not very clear :

           LDA   0             ; ???

Do we want to load the constant Zero in the accumulator (8 or 16 bit ?) or do we want to load the value located at address 0 (but is it Page Direct
$00, Current Bank address $0000 or Long address $00/0000 ?).

The first thing is to tell the difference between Data and Address. Data Operand starts with a
# while Address is everything else (numeric value, Label...) :

           LDA   #0            ; Data (Decimal)
           LDA   #$2000        ; Data (Hexadecimal)
           LDA   #%11110000    ; Data (Binary)

           LDA   0             ; Address (Decimal)
           LDA   $2000         ; Address (Hexadecimal)
           LDA   %00100000     ; Address (Binary)
           LDA   LABEL         ; Address (Label)
           LDA   LABEL+2       ; Address (Expression with Label)

The only times where Operands could be Data without using the
# as leading character is when we build expressions with an even number of Labels. For example, we compute here the number of bytes between two Labels :

           LDA   END-BEGIN     ; Data (Number of bytes between the two labels)

For immediate addressing modes (Operand is a Data), we have to figure out if the Operand is 8 bit or 16 bit. The following code :

           LDA   #1            ; Store 1 into the accumulator

could be assembled as :

+----+-------+------+--------------------+-----------------------------------------
| MX | Reloc | Size | Address Object Code|  Source Code
+----+-------+------+--------------------+-----------------------------------------
| 11 |       |    2 | 8000 :
A9 01       |            LDA   #1        ; A is 8 bit (M=1)

or

+----+-------+------+--------------------+-----------------------------------------
| MX | Reloc | Size | Address Object Code|  Source Code
+----+-------+------+--------------------+-----------------------------------------
| 00 |       |    3 | 8000 :
A9 01 00    |            LDA   #1        ; A is 16 bit (M=0)

Merlin 32 keeps the status of the M (Accumulator) and X  (X and Y registers) bits of the State Register for each line of the source code. In the Output text file, you can see them in the
MX column (0=16 bit, 1= 8 bit). The choice between 8 or 16 bit for Data Operand is based on the MX values. You can set the value of the MX bits using the MX directive in the source code. The MX directive use as Operand a value between 0 and 3, usually display using Binary format (%00, %01, %10 or %11) :

+----+-------+------+--------------------+-----------------------------------------
| MX | Reloc | Size | Address Object Code|  Source Code
+----+-------+------+--------------------+-----------------------------------------
| -- |       |      |
  |            MX    %00       ; Assemble next lines with M and X in 16 bit
| 00 |       |    3 | 8000 : A9 01 00    |            LDA   #1        ; A is 16 bit (M=0)
...
| -- |       |      |                    |            MX    %11       Assemble next lines with M and X in 8 bit
| 11 |       |    2 | 8003 : A9 01       |            LDA   #1        ; A is 8 bit (M=1)

Merlin 32 , furthermore, analyzes the Source Code for SEP or REP Opcodes and change the MX values based on the Operand value :

+----+-------+------+--------------------+-----------------------------------------
| MX | Reloc | Size | Address Object Code|  Source Code
+----+-------+------+--------------------+-----------------------------------------
| -- |       |    2 |
8000 : C2 30       |            REP   #$30      ; Force M and X bits from Status Register in 16 bit
| 00 |       |    3 | 8002 : A9 01 00    |            LDA   #1        ; A is 16 bit (M=0)
...
| -- |       |    2 | 8005   E2 30       |            SEP   #$30      Force M and X bits from Status Register in 8 bit
| 11 |       |    2 | 8007 : A9 01       |            LDA   #1        ; A is 8 bit (M=1)

Unlike the
REP and SEP Opcodes, the MX directive doesn't change anything for code execution, it only impacts the assembly process.Up to you to control that 16 bit assembled code is called with 16 bit accumulator & registers.

Some Operand expressions may represent values larger than the Accumulator (or Register) size. By using some operators (
< > ^) right after the #Merlin 32 lets you select the bytes(s) you want to keep :

IMMEDIATE 8 BIT

We take only 1 byte from the Operand :

A9 00        LDA  #LABEL     ; with LABEL = $00E12000
A9 00        LDA  #<LABEL    ; with LABEL = $00E12000
A9 20        LDA  #>LABEL    ; with LABEL = $00E12000
A9 E1        LDA  #^LABEL    ; with LABEL = $00E12000

IMMEDIATE 16 BIT

We take 2 bytes from the Operand :

A9 00 20     LDA  #LABEL     ; with LABEL = $00E12000
A9 00 20     LDA  #<LABEL    ; with LABEL = $00E12000
A9 20 E1     LDA  #>LABEL    ; with LABEL = $00E12000
A9 E1 00     LDA  #^LABEL    ; with LABEL = $00E12000

     The PEA Opcode acts like an Immediate 16 bit Opcode, even if the Operand is seen as an address (no
#) :

F4 00 20     PEA  LABEL      ; with LABEL = $00E12000
F4 00 20     PEA  <LABEL     ; with LABEL = $00E12000
F4 20 E1     PEA  >LABEL     ; with LABEL = $00E12000
F4 E1 00     PEA  ^LABEL     ; with LABEL = $00E12000

 When the Operand is an Address, Merlin 32 has to figure out how many bytes (between 1 and 3) is used for the address encoding :

 +----+-------+------+--------------------+-----------------------------------------
| MX | Reloc | Size | Address Object Code|  Source Code
+----+-------+------+--------------------+-----------------------------------------
| 00 |       |    2 |
8000 : A5 10       |            LDA   $10      ; Direct Page   (1 byte)
| 00 |       |    3 | 8002 : AD 00 C0    |            LDA   $C000    ; Absolute      (2 bytes)
| 00 |       |    4 | 8005 : AF 00 20 E1 |            LDA   $E12000  ; Long          (3 bytes)

Here is how Merlin 32 chooses among the 3 different addressing modes :

DIRECT PAGE

By default, Merlin 32 uses the Direct Page addressing mode for any Operand having a value in the range $00-$FF :

A5 10        LDA   $10      ; Direct Page  (1 byte)
A5 E1        LDA   LABEL    ; with LABEL = $E1

ABSOLUTE
    The Absolute address mode is the default on for any Address other than the range
$00-$FF. If the Operand is in the range $00-$FF, you can force an Absolute addressing mode by adding any character (except L) at the end of the Opcode :

AD 00 20     LDA  $E12000   ; Use only the 2 low bytes of the address
AD 00 20     LDA  $2000     ;
AD 11 00     LDA: $11       ; Force Absolute with :
AD 00 20     LDA  LABEL     ; with LABEL = $E12000
AD 00 20     LDA  LABEL     ; with LABEL = $2000
AD 11 00     LDA: LABEL     ; with LABEL = $11

LONG
    The Long addressing mode is forced by adding a
L character at the end of the Opcode or a > character at the beginning of the Operand :

AF 00 20 E1  LDAL  $E12000  ;
AF 00 20 E1  LDAL  LABEL    ; with LABEL = $E12000
AF 00 20 AA  LDAL  LABEL    ; with LABEL = $2000  ($AA is the LABEL Bank)
AF 00 00 AA  LDAL  LABEL    ; with LABEL = $00    ($AA is the LABEL Bank)
AF 00 20 E1  LDA   >$E12000 ;
AF 00 20 E1  LDA   >LABEL   ; with LABEL = $E12000
AF 00 20 AA  LDA   >LABEL   ; with LABEL = $2000  ($AA is the LABEL Bank)
AF 00 00 AA  LDA   >LABEL   ; with LABEL = $00    ($AA is the LABEL Bank)


NUMBER
You can use decimal, hexadecimal or binary numerical data :

- Hexadecimal numbers start with a $ : $E12000, $00A0, $BD
- Binary numbers start with a
% and can use _ as visual separator : %01100101, %0000_1111_0000_1111
- Decimal numbers don't use any specific prefix :
15, 635, 32768

For opcodes accepting both data and addresses, you have to use the # as first character in the operand, in order to specify a data value :

A9 A0 00    LDA  #$00A0        ; Load a 16 bit constant numeric data 160 ($A0) in the accumulator.
AD 00 20    LDA   $2000        ; Load value stored at address $2000 in the accumulator.

For opcodes accepting only one type of operand (data or address) such as REP, PEA, JSR, MVN, STA... you don't need to add the # but is it always a good idea to insert it when data is involved (REP, SEP, PEA...).

STRING
The Apple IIgs recognizes only the following characters (the first one is the Space character) :

  ! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ?
@ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ \ ] ^ _
` a b c d e f g h i j k l m n o p q r s t u v w x y z { | } ~

A string is a set of ASCII characters enclosed by quotes (
') or double quotes (") :

48 65 6C 6C 6F    ASC  'Hello'        ; Using simple quote, the high bit is set to 0 (standard ASCII)
C8 E5 EC EC EF    ASC  "Hello"        ; Using double quotes, the high bit is set to 1 (for Text Screen encoding)

You can encode any ASCII character in a string by inserting before / in the middle / after the Hexadecimal value of the character(s) :

ErrorMsgLoad      ASC  'Can',27,'t load file !'    ; Can't load file, $27 is the hexadecimal value for '

DATA STORAGE
There are many pseudo opcodes used to define Data Storage (tables...).

HEX          define HEXadecimal data

00 01 02 03     HEX  00010203
00 01 02 03     HEX  00,01,02,03
00 01 02 03     HEX  0001,0203

   The operand consists of hexadecimal numbers (0-F) having even number of Hex digits (so 0F, not F). They may be separated by commas or may be adjacent. The $ is not required here.

DFB or DB          DeFine Byte

0A 0B 0E 0F     DFB  $0A,$0B,14,%0000_1111
EE              DFB  LAB+2                ; LAB Address is $FDEC, so LAB+2=$FD EE
FD              DFB  >LAB                 ; LAB Address is $ FD EC

  The operand consists of several bytes of data, separated by commas. It accepts all kinds of numeric formats (decimal, $hexadecimal and %binary) and arithmetic expressions. The low byte of the expression is always taken, except if you use the > sign (get high byte).

DDB          Define Double Byte

00 0A 00 0E     DDB  $000A,14
FD EC FD EE     DDB  LAB,LAB+2            ; LAB Address is $FDEC, so LAB+2=$FDEE

   The operand consists of several two-byte of data, separated by commas. It accepts all kind of numeric formats (decimal, $hexadecimal and %binary) and arithmetic expressions. The bytes are placed high-byte first.

DA or DW          Define Address or Define Word

0A 00 0E 00     DA   $000A,14
EC FD EE FD     DA   LAB,LAB+2            ; LAB Address is $FDEC, so LAB+2=$FDEE

  The operand consists of several two-byte of data, separated by commas. It accepts all kind of numeric formats (decimal, $hexadecimal and %binary) and arithmetic expressions. The bytes are placed low-byte first.

ADR           Define ADdRess - 3 bytes

0A 00 00     ADR   $0A
00 20 E1     ADR   SCREEN                 ; SCREEN Address is $E1/2000

   The operand consists of several three-byte of data, separated by commas. It accepts all kind of numeric formats (decimal, $hexadecimal and %binary) and arithmetic expressions. The bytes are placed low-byte first.

ADRL           Define Long ADdRess - 4 bytes

0A 00 00 00     ADRL   $0A
00 20 E1 00     ADRL   SCREEN             ; SCREEN Address is $E1/2000

   The operand consists of several four-byte of data, separated by commas. It accepts all kind of numeric formats (decimal, $hexadecimal and %binary) and arithmetic expressions. The bytes are placed low-byte first.

DS           Define Storage

00 00 00 00 00 00 00 00     DS   8        ; Reserve 8 byte of data, filled with 0x00
EE EE EE EE EE EE EE EE     DS   8,$EE    ; Reserve 8 byte of data, filled with 0xEE
A0 A0 A0 ...                DS   \,$A0    ; Fill memory with 0xA0 values until the next memory page

   Reserve space for Operand bytes of data (set to 0x00). You can choose to fill the reserved space with values other than 0x00 by providing a value (or an expression) as second operand. If you use the keyword \ as first operand, the memory is filled until the next page boundary. On relocatable code, the DS \ should only be used at the end of the file.

ASC           define ASCii text

48 65 6C 6C 6F    ASC  'Hello'        ; Using simple quote, the high bit  is set to 0
C8 E5 EC EC EF    ASC  "Hello"        ; Using double quotes, the high bit is set to 1

   This puts a delimited ASCII string in the object code. The simple quote is standard Ascii, used in Text files, GS/OS calls, file paths....

    The  double quotes (high bit set to 1) is used to display Text on Apple IIgs Text Mode screen (Page 1 or 2). The valid characters for Screen display are :

  ! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ?
@ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ \ ] ^ _
` a b c d e f g h i j k l m n o p q r s t u v w x y z { | } ~


The encoding goes from $A0 (Space) to $FF ( ).

DCI           Dextral Character Inverter

48 65 6C 6C EF    DCI  'Hello'        ; The high bit is set to 0, except for the last character
C8 E5 EC EC 6F    DCI  "Hello"        ; The high bit is set to 1, except for the last character

   This puts a delimited ASCII string in the object code, with the last character having the opposite high bit to the others.

INV           define INVerse text

08 05 0C 0C 0F    INV  'HELLO'        ; Inverse works only with Uppercase characters + Special characters
08 05 0C 0C 0F    INV  "HELLO"

   This puts a delimited ASCII string in the object code, in Inverse video format. The valid characters for Inverse Video are :

@ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ \ ] ^ _
  ! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ?

   The encoding goes from
$00 (@) to $3F (?).

FLS           define FLaShing text

48 65 6C 6C 6F    FLS  'HELLO'        ; Flashing works only with Uppercase characters + Special characters
48 65 6C 6C 6F    FLS  "HELLO"

   This puts a delimited ASCII string in the object code, in Flashing video format. The valid characters for Flashing Video are :

@ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ \ ] ^ _
  ! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ?

   The encoding goes from $40 (@) to $7F (?).

REV           define REVerse text

6F 6C 6C 65 48    REV  'Hello'        ; The high bit is set to 0
EF EC EC E5 C8    REV  "Hello"        ; The high bit is set to 1

   This puts a delimited ASCII string in the object code, in backward order.

STR           define STRing with leading length byte

05 6F 6C 6C 65 48  STR  'Hello'       ; The high bit is set to 0
05 EF EC EC E5 C8  STR  "Hello"       ; The high bit is set to 1

   This puts a delimited ASCII string in the object code with leading length byte. Following hex values, if any, are not counted in the length.

STRL           define Long STRing with leading length word

05 00 6F 6C 6C 65 48  STRL  'Hello'   ; The high bit is set to 0
05 00 EF EC EC E5 C8  STRL  "Hello"   ; The high bit is set to 1

   This puts a delimited ASCII string in the object code with leading length word. Following hex values, if any, are not counted in the length. This is intended for use with GS/OS for Class 1 strings

LABEL
A Label is case sensitive and it has to be unique. Backward and forward references are allowed :

           JSR   GET_KEY
           ...
GET_KEY    LDA   $C000         ; Wait for a key
           BPL   GET_KEY
           BIT   $C010
           RTS

A label can't contain any characters less (in ASCII value) than the
Zero (Space, !, ", #, $, %, &, ', (, ), *, +, ', -, ., /). It must begin with a character other than 0 to 9. If you want to keep your source code compatible with Merlin 16+, the label length can't exceed 26 characters.

A label can be used without any Opcode on the line. In this case it has the same address value than the next line :

GET_KEY                        ; Wait for a key
           LDA   $C000
           ...

Labels starting with
] or : characters are defined as Local Labels. Unlike Global Labels, they can be found at numerous places in the source code. Local Labels can't be used inside Macros or with ENT / EXT directives. The first Label in a program can't be a Local Label.

Local Labels starting with
] can only be used for backward branching. They always refers the closest backward local label with the same name :

           LDX   #$00
]LOOP      LDA   TABLE1,X      ; Line 1
           BEQ   NEXT
           INX
           BRA   ]LOOP         ; Branch to Line 1
NEXT       LDY   #$00
]LOOP      LDA   TABLE2,Y      ; Line 2
           BEQ   END
           INY
           BRA   ]LOOP         ; Branch to Line 2
END        RTS

Local Labels starting with : can be used for backward and forward branching but their scope is limited by the two embracing Global Labels :

BEGIN      CPX   #$A0          ; :LOOP is defined between BEGIN and END
           BEQ
:LOOP

LDX   #$00
:LOOP      LDA   TABLE1,X
           BEQ   END
           INX
           BRA   :LOOP
END        RTS

In the output text file created during assembling process, the Local Labels are replaced by Global Labels (using unique ids
ozunid_*)  to show how the assembler has resolved the references :

           LDX   #$00
]LOOP      LDA   TABLE1,X      ; Line 1
           BEQ   NEXT
           INX
           BRA   ]LOOP         ; Branch to Line 1
NEXT       LDY   #$00
]LOOP      LDA   TABLE2,Y      ; Line 2
           BEQ   END
           INY
           BRA   ]LOOP         ; Branch to Line 2
END        RTS
           LDX   #$00
ozunid_1   LDA   TABLE1,X      ; Line 1
           BEQ   NEXT
           INX
           BRA   ozunid_1      ; Branch to Line 1
NEXT       LDY   #$00
ozunid_2   LDA   TABLE2,Y      ; Line 2
           BEQ   END
           INY
           BRA   ozunid_2      ; Branch to Line 2
END        RTS

EXPRESSION
Expressions are build using Data (number, label, ASCII character or current address *) combined with following Comparison / Arithmetic / Logical Operators (lowest priority comes first) :

<  =  >  #
+  -
*  /
&  .  !
-
Less_Than  Equal  More_Than  Not_Equal
Addition  Subtraction
Multiplication  Integer_Division
AND  OR  Exclusive_OR
Unary_Negation

Beware about the usage of character
* because it is both Data (current line address) and Operator (Multiplication).

By default, Expressions are evaluated from left to right, without caring about the operators priority :

1+2*3    is evaluated as 9, not 7 (1+2*3 = 3*3 = 9)

If you want to evaluate the expression using operators priority (=algebraically), you have to enclose the expression with braces { } (parenthesis are reserved for indirect addressing modes) :

{1+2*3}  is evaluated as 7 (1+2*3 = 1+6 = 7)

Comparison operators (
< = > #)  return 1 for True and 0 for False.

Here are few examples of common Expressions in Merlin 32 :

1024+$FF                 ; 1024 plus 255 = 1279
"K"-"A"+1                ; Ascii K minus Ascii A plus 1 = $CB - $C1 + 1 = 11
LABEL+2                  ; LABEL plus 2
LABEL2-LABEL1            ; LABEL2 minus LABEL1 = number of bytes between two labels
*-2                      ; Current address minus 2
#$9F&"A"                 ; $9F AND $C1 = $81 (Control-A)
LABEL1/LABEL2            ; 0 if LABEL1 < LABEL2, 1 if LABEL1 >= LABEL2

EQUIVALENCE
The EQU (EQUivalence) directive is used to define constant values for which a meaningful name is desired. A constant name is case sensitive and can't start with a ] character (reserved for Variables, see below). Forward references are not allowed so define your constants before using them (most of the time at the beginning of the program). You can either use EQU or = to define them :

HOME       EQU  $FC58    ; Clear Screen routine address
KDB        EQU  $C000    ; Keyboard Softswitch
PTR
=    *        ; Current address in the assembled source
PIXEL_SIZE =    160*200  ; (160 bytes / line) * 200 lines
SCB_SIZE   =    256      ; 256 bytes (even if we only use the first 200)
PAL_SIZE   =    16*16*2  ; 16 palettes of 16 colors with 2 bytes / color
SHR_SIZE   =
PIXEL_SIZE+PAL_SIZE+PAL_SIZE  ; Total SHR Page size

The evaluation of a constant value is done at the definition time. So SHR_SIZE is properly evaluated as
32000+256+512 (=32768) and not as  160*200+256+16*16*2 (=1032704 because of left-to-right evaluation).

Constants can be used anywhere in the Operand field :

           JSR  HOME     ; Clear Screen
WaitKey    LDA  KDB      ; Wait for a key
           BPL
WaitKey

VARIABLE
A Variable name is case sensitive and always beginning with a ]. Variables are mostly used in Macros and Loops. The first declaration of a Variable is used for its initialization :

]LINE      =    $2000         ; First line address is $E1/2000

It can be redefined (=modified) as often as you need :

]LINE      =    ]LINE+160     ; Next line
           DA   ]LINE

 Forward reference to a Variable is not allowed, so define your variables before using them.

LOOP
The LUP directive is used to repeat portions of the source code between the pseudo Opcode LUP and the --^.  The number of iterations is defined by the Operand value :

]LINE      =     $2000         ; Build the Table of the 200 SHR lines
           LUP   200
           DA    ]LINE         ; Assembled as DA  $2000,$20A0,$2140,$21E0...
]LINE      =     ]LINE+$A0
           --^

The maximum number of iterations is $8000.  The above use of incrementing variables in order to build a table will not work if used within a Macro.

If you want to use Labels in a loop, you have to use a
@ character in the Label name in order build dynamic label names :

           LUP   3
KBD_@      LDA   $C000
           BPL   KBD_@
           BIT   $C010
           --^

is assembled as :

KBD_Z      LDA   $C000         ; Each Label has a unique name
           BPL   KBD_Z
           BIT   $C010
KBD_Y      LDA   $C000
           BPL   KBD_Y
           BIT   $C010
KBD_X      LDA   $C000
           BPL   KBD_X
           BIT   $C010

The @ is replaced by uppercase letters (Z, Y, X, ..., B ,A). The maximum iteration number is 26.

CONDITION
Conditions are used to build different code based on different situations (6502 / 65c02 processors, 8 bit / 16 bit environments, ROM / RAM context, Macro inner code...). There are two ways to use conditional pseudo opcodes in Merlin 32 :

- DO   ELSE    FIN
- IF      ELSE    FIN

ELSE is optional but the FIN is mandatory. You can nest DO or IF :

DO    16_BIT       ; 8 bit or 16 bit ?
...                ;   65c816 opcodes
ELSE
DO    6502         ; Apple IIe or IIc ?
...                ;   6502 opcodes
ELSE
...                ;   65c02 opcodes
FIN
FIN

If you want to keep your source code compatible with Merlin 16+, the
nest depth is limited to 8 levels.

If the expression following the DO / IF is evaluated as True (everything but 0), the code between the DO / IF and the ELSE (or between the DO / IF and the FIN if the ELSE is not there) is assembled :

DO    0              ; Turn assembly OFF
DO    1              ; Turn assembly ON
DO    16_BIT         ; Turn assembly ON if 16_BIT != 0
DO    LABEL1/LABEL2  ; Turn assembly OFF if LABEL1<LABEL2
DO    LABEL1-LABEL2  ; Turn assembly OFF if LABEL1=LABEL2

The IF  ELSE  FIN is used to check the status of the M and X bit (size of Accumulator and X / Y registers). M and X bits may be 0 (=16 bit) or 1 (=8 bit) so MX can be 0 (%00), 1 (%01) , 2 (%10) or 3 (%11) :

IF    MX/2           ; Turn assembly ON if M is  8 bit (%00/2=0, %01/2=0, %10/2=1, %11/2=1)
IF    MX/2-1         ; Turn assembly ON if M is 16 bit (%00/2-1=-1 %01/2-1=-1 %10/2-1=0 %11/2-1=0)
IF    MX&1           ; Turn assembly ON if X is  8 bit (%00&1=0 %01&1=1 %10&1=0 %11&1=1)
IF    MX&1-1         ; Turn assembly ON if X is 16 bit
(%00&1-1=-1 %01&1-1=0 %10&1-1=-1 %11&1-1=0)
IF    MX/3           ; Turn assembly ON if M and X are  8 bit (%00/3=0, %01/3=0, %10/3=0, %11/3=1)
IF    MX!3/3         ; Turn assembly ON if M and X are 16 bit (%00!3/3=1, %01!3/3=0, %10!3/3=0, %11!3/3=0)

The IF  ELSE  FIN can also be used to check the value of the leading character of a variable (mostly used in Macros) :

IF    "=]TEMP        ; Turn assembly ON if the first character of variable ]TEMP is "
IF    #,]VAR1        ; Turn assembly ON is the first character of variable ]VAR1 is #

In the Operand of pseudo Opcode IF, you can use either
= or , as separator between the value of the first character (comes first in the Operand) and the name of the Variable.

MACRO
A Macro is a user-named sequence of assembly language statements. You start the definition of the Macro with a MAC pseudo Opcode and you end it with EOM (End Of Macro) or <<< (alternate form). The name of the Macro takes place in the Label column :

WaitForKey  MAC            ; Define the WaitForKey Macro
WFK1        LDA    $C000   ; Wait until a key is pressed
            BPL
WFK1
            BIT    $C010
            <<<            ; End of Macro

In the source code, simply put the name of the Macro as Opcode to call it :

            SEP    #$30
            WaitForKey          ; Call WaitForKey Macro
            REP    #$30
            JSR    PlaySound

You can use alternate forms (PMC and >>>)  to call a Macro from the source code :

            PMC    WaitForKey   ; Call WaitForKey Macro using PMC (Put Macro Call)
            >>>    WaitForKey   ; Call WaitForKey Macro using >>>

During assembly process, the Macro code will be inserted at the Macro call location :

            SEP    #$30
ozunid_1    LDA    $C000        ; Wait until a key is pressed
            BPL    ozunid_1
            BIT    $C010
            REP    #$30
            JSR    PlaySound

Because the same Macro can be used several times in the source code, the Macro inner Labels will be replaced by unique names (
ozunid_*).

In the Output text file, we let the Macro call visible in the
Source Code column and we identify it as Macro in the Line Type column :

+-------------+----+-------+------+--------------------+-------------------------------------------------------------------
| Line Type   | MX | Reloc | Size | Address Object Code|  Source Code
+-------------+----+-------+------+--------------------+-------------------------------------------------------------------
...
| Code        | 00 |       |    2 | 8000 : E2 30       |                 SEP    #$30
| Macro       | 11 |       |    0 | 8000               |                 WaitForKey
| Code        | 11 |       |    3 | 8002 : AD 00 C0    | ozunid_1        LDA    $C000         ; Wait until a key is pressed
| Code        | 11 |       |    2 | 8005 : 10 FB       |                 BPL    ozunid_1
| Code        | 11 |       |    3 | 8007 : 2C 10 C0    |                 BIT    $C010
| Code        | 11 |       |    2 | 800A : C2 30       |                 REP    #$30
| Code        | 00 |       |    3 | 800C : 20 A2 80    |                 JSR    PlaySound
...

Forward reference to a Macro is not possible, so a Macro must be defined before it is called. Usually, you declare the Macros at the start of the source code. You may also write the Macros in dedicated files and include such files using a USE directive :

            USE    Locator.Macs  ; Use Macros defined in the Locator.Macs.s file located in the Macro folder
            USE    4/Mem.Macs
 ; Use Macros defined in the Mem.Macs.s file located in the Macro folder

The Operand indicates the names of the Macro definition file (without the .s extension). By convention, the file name ends with
.Macs but it is not mandatory. In Merlin 16+, the Macro definition files are stored in dedicated sub-folders, so you have to enter the relative file path (4/Mem.Macs). In Merlin 32, all the Macro definition files are stored in the Macro Folder (second parameter of the command line), so we don't need anymore the subfolder part, we just look at the file name (for Merlin 16+ compatibility, you can let the subfolder path without any issue, it will be ignored).

Macros can receive parameters (up to 8) referenced as Macro variable
]1 to ]8 :

WaitForKey  MAC            ; Define the WaitForKey Macro
WFK1        LDA    $C000   ; Wait until a key is pressed
            BPL
WFK1
            BIT    $C010
            CMP    ]1      ; Check if the Key is the expected one
            BNE    WFK1
            <<<            ; End of Macro

In the source code, add the parameter value after the Macro name, as Operand value :

            SEP    #$30
            WaitForKey #$95  ; Wait for -> key (right arrow)
            REP    #$30

If you are using PMC or >>> form, you have to group the Macro name and the parameters together in the Operand column :

            SEP    #$30
            PMC    WaitForKey,#$95  ; Wait for -> key (right arrow)
            REP    #$30

You can use the following characters to separate the Macro name from the parameters :
.  /  ,  -  (  Space

If your Macro receives several parameters, you have to use the
; as separator in the call :

Move        MAC            ; Define the Move Macro
            LDA    ]1
            STA    ]2
            <<<            ; End of Macro

...
            Move   $00;$02          ; Call the Move Macro with two addresses

Move   #$00;$02         ; Call the Move Macro with one constant and one address
            Move   #"A";(STRING),Y  ; Call the Move Macro with one constant and an indexed address

There is no control of the parameters value. You can put there what you want (constant, address, label, expression...). The check will be done, by the assembly process, after the substitution.

The
Macro variable ]0 returns the number of variables in the parameter list of the Macro call. This lets you create Macros with flexible input using conditional pseudo Opcodes DO, ELSE and FIN :

Pull        MAC            ; Define the Pull Macro
            PLA
            DO     ]0      ;  If a parameter is given (]0 != 0)
            STA    ]1      ;    Use it as target address to store the data
            FIN
;  End of Condition
            <<<            ; End of Macro

...
            Pull           ; Pull a value off the stack

            Pull   LABEL   ; Pull a value off the stack and store it in location LABEL

The
conditional pseudo Opcodes IF, ELSE and FIN can be used to distinguish address (or Label) from constant :

 PushWord    MAC            ; Define the PushWord Macro
            IF     #=]1    ;  If a the first character of parameter ]1 is # (=constant)
            PEA    ]1      ;    Push the constant value on the stack with a PEA
            ELSE           ;  Else
            LDA    ]1      ;    Load the value in the accumulator
            PHA            ;    Push
the accumulator on the stack with a PHA
            FIN            ;  End of Condition
            <<<            ; End of Macro

...
            PushWord #$000 ; Push a constant value on the stack

            PushWord LABEL ; Push a value stored at LABEL address on the stack


A Macro code can call another Macro. If you want to keep compatibility with Merlin 16+
the nest depth is limited to 15 levels :

MoveWord    MAC            ; Define the MoveWord Macro (Accumulator is 16 bit)
            LDA    ]1
            STA    ]2
            <<<            ; End of Macro

MoveLong    MAC            ; Define the MoveLong Macro (Accumulator is 16 bit)
            MoveWord  ]1+2;]2+2
            MoveWord  ]1;]2
            <<<            ; End of Macro

You can also nest the definition of the inner Macro (MoveWord) within the code of the calling Macro (MoveLong). The final
<<< closes the two Macros together.

MoveLong    MAC            ; Define the MoveLong Macro
            MoveWord  ]1+2;]2+2

MoveWord
   MAC            ;   Define the MoveWord Macro inside the
MoveLong Macro definition
            LDA    ]1
            STA    ]2

            <<<            ; End of both Macros

The MoveLong Macro is assembled as follows :

            LDA    ]1+2    ; From MoveWord call
            STA    ]2+2
            LDA    ]1      ; From MoveWord definition
            STA    ]2

ORIGIN
If your program is supposed to run from a fixed memory address, you have to use the ORG directive at the start of the source code to define the start address. The operand may be 16 bit (for bank $00) or 24 bit :

         ORG  $2000         ; The program will run from bank $00, at address $2000

         ORG  $038000       ; The program will run from bank $03, at address $8000

If ORG directive is missing, the default start address will be
$8000 in bank $00.

If your ORG operand is inferior to
$0100 or inferior to $000100, the code start address will match with Direct Page (former Page Zero) and all references from $0000 to $00FF will use Direct Page addressing mode :

                              ORG  $0000         ; The program will run from bank $00, at address $0000

$00/0000 : A5 03              LDA  SCORE         ; Beware, the Direct addressing mode has been used here
$00/0002 : 60                 RTS
$00/0003 : 00 20       SCORE  HEX  0020

If your code is suppose to run from
$0000 in a bank which is not bank $00, think about giving a 24 bit address as Operand (ex : ORG $030000).

You can use ORG directive without Operand when several ORG are used in the source code, as a RE-ORG to re-establish the correct address pointer after a segment of code which has a different ORG  :

                              ORG  $8000         ; This code is assembled to run from $00/8000

$00/8000 : A9 00 20           LDA  #$2000
$00/8003 : 20 AC 80           JSR  SCREEN
$00/8006 : 4C 0D 80           JMP  NEXT

                              ORG  $0400         ; This code is assembled to run from $00/0400
$00/0400 : AD 00 C0           LDA  $C000
$00/0403 : 60                 RTS

                              ORG                ; RE-ORG in $00/800D
$00/800D : 8D AE 80    NEXT   STA  VBL

If you want to write16 bit relocatable code, you have to use the directive REL at the start of your program :

                              REL               ; Relocatable code for Apple IIgs S16 executable (OMF 2.1 format)
                              DSK   Cogito.L

$00/0000 : A9 00 20           LDA  #$2000
$00/0003 : 20 AC 80           JSR  SCREEN

Merlin 32
will assemble the source code from a virtual
$00/0000 address (without Direct Page addressing mode usage) and the object code will be embedded into an OMF file (release 2.1). The output is a S16 program running under Prodos 16 or GS/OS.

DISK
The following directives are used to include external files into your project or to define the properties of the output files created by the assembly process.

The USE and PUT directives are used to insert the content of a Text file (Source or Macro) at the location of the Directive :

            USE    4/Int.Macs      ; Use Int.Macs.s Macro file definitions
            USE    4/Locator.Macs  ; Use Locator.Macs.s Macro file definitions
...
            PUT    Cogito.Main     ; Insert Cogito.Main.s Source file
            PUT    Cogito.Bout     ; Insert Cogito.Bout.s Source file

By convention, the USE directive is used to include Macros (*.Macs.s) and Equivalence files and the PUT directive is used to include Source Code files. Because Merlin 16+ source files were limited to 64 KB, there was a need to cut a large source file into smaller ones. Such restriction doesn't exist anymore in Merlin 32 but it is always a good idea to split your project into small independent files (Music, Graphic, Data Compression, I/O, Mouse, Joystick; Keyboard...) so you can re-use some of the files among several projects. If you want to use your source files in Merlin 16+, keep them < 64 KB.

The PUTBIN directive is used to insert the content of a Binary file at the location of the Directive :

Logo        PUTBIN Cogito.Logo     ; Insert Cogito.Logo Binary file
Sound       PUTBIN Cogito.Sound    ; Insert Cogito.Sound Binary file

The content of the Binary file is transfered in the source code as Hexadecimal data :

Logo        HEX    00,12,59,AE,00,11,FE,8C,A9,D4,14,87,CD,DE,9A,6E
            ...

Sound
      HEX    87,E6,4A,26,41,6E,FF,AE,31,58,2A,F9,6C,D7,28,9B
            ...
End

The size of the Binary file can be computed inside the source code by using  the labels :

LogoSize    EQU     #Sound-#Logo
SoundSize   EQU     #End-#Sound

Beware, the PUTBIN directive does not exist in Merlin 16+. Merlin 16+ lets you include Binary files during the Link process (you have to use the LNK directive in the Linker file).

The usage of USE and PUT / PUTBIN directives are limited to ONE source file (named Master
source file) : you can't use PUT / PUTBIN directives within a PUT file (same for USE directive). The Master source file contains all the USE and PUT / PUTBIN directives and this is the one we put as source file parameter of the Merlin 32 command line.

The DSKSAV and LNK directives are used to define the name of the output file created by the assembly process. The DSK directive is used to define the name of the output binary file for the code following the DSK directive :

            DSK    Cogito     ; Assemble the following code as 'Cogito' file
            ORG    $8000
            LDA    #$0000
            ...

while the SAV directive is used to define the name of the output binary file for the code located before the SAV directive :

            ORG    $8000
            LDA    #$0000
            ...
            SAV    Cogito     ; Assemble the previous code as 'Cogito' file

You may encounter several DSK or SAV directives in the same source code. In this case, the assembly process will generate several output files :

            DSK    CogitoMain ; Assemble the following code as 'CogitoMain' file
            ORG    $030000
            LDA    #$0002
            ...

            DSK    CogitoAux  ; Assemble the following code as 'CogitoAux' file
            ORG    $038000
            LDX    #$00A0
            ..

The LNK directive is often used for relocatable code, in association with the REL directive. In Merlin 32, it has the same behavior than the DSK directive. It is located at the beginning of the source file :

            REL               ; Relocatable Code
            LNK
Cogito.l   ; Assemble and Link the file as a S16 program named 'Cogito'
            LDA    #$0002
            ...

The TYP directive is used to set the output file type (one byte : $00-$FF). It is usually associated with DSK or SAV directives :

            TYP    $06             ; Binary File Type
            DSK    File1
            ...

Because Merlin 32 creates the output binary file on a Windows file system, there is no way to set the Prodos file type. The TYP directive will be ignored by Merlin 32 (you can let it in the source code for Merlin 16+ compatibility purpose). If you want to set the Prodos file type, you have to set it during the transfer of file into a Prodos disk image. If you are using CADIUS for this job, you can define the file type and the file attributes in the _FileInformation.txt file (see CADIUS documentation for more details).

MISC
The following miscellaneous directives are not often used in Source code so we only provide here basic explanations for them. Please refer to the Merlin 16+ manual for more details.

DUM            DUMmy section
DEND          Dummy END

   This defines a section of code that will be examined for the values of the labels but will produce no object code. The DUM directive uses as Operand the ORG value of this section :

            DUM    $E12000      ; SHR Page is located in $E12000 :
PIXEL       DFB    160*200      ;   200 lines
SCB         DFB    256          ;   200 SCB used
PAL0        DFB    32           ;   Palette 0
PAL1        DFB    32           ;   Palette 1
PAL2        DFB    32           ;   Palette 2
            ...
            DEND

            LDX    #$0000
            LDAL   PIXEL,X
            ...

   DUM and DEND are often used to create a set of labels that will exist outside your program; but that your program needs to reference. Thus, the labels and their values need to be available, but you don't want any code actually assembled for that particular part of the listing.

   The DUM and DEND can be efficiently used to describe the organization of the Direct Page (list of variables) :

            DUM    $000000      ; Direct Page is located at $000000
UP          HEX    0000         ;   $00
DOWN        HEX    0000         ;   $02
LEFT        HEX    0000         ;   $04
RIGHT       HEX    0000         ;   $06
BUTTON      HEX    0000         ;   $08
            ...
            DEND

            LDA    LEFT         ; = LDA  $04
            CMP    #$0001
            ...


END            END of source file

   Tells the assembler to ignore the rest of the source code (including Labels).


CHK            place a CHecKsum in object code

   This places a checksum byte into object code at the location of the CHK directive. This is usually placed at the end of the program and can be used by the program at runtime to verify the existence of an accurate image of the program in memory. The checksum is calculated with Exclusive-ORing each successive byte with the running result. Of course, such directive can't be used with relocatable program, because the loader is patching the program's addresses in memory at runtime.


DAT            place the current DATe in object code

   This places the current Date/Time
(date of the build)  in the object code, as a Text string (High bit Clear or Set).  The Operand value (1 to 8) is used to control the Date/Time format and the encoding :

            DAT    1              ; Date Only, High Bit Set Ascii   : "31-DEC-14"
            DAT    2              ; Date Only, High Bit Set Ascii   : "12/31/14"
            DAT    3              ; Date/Time, High Bit Set Ascii   : "31-DEC-14   5:46:12 PM"
            DAT    4              ; Date/Time, High Bit Set Ascii   : "12/31/14   5:46:12 PM"
            DAT    5              ; Date Only, High Bit Clear Ascii : '31-DEC-14'
            DAT    6              ; Date Only, High Bit Clear Ascii : '12/31/14'
            DAT    7              ; Date/Time, High Bit Clear Ascii : '31-DEC-14   5:46:12 PM'
            DAT    8              ; Date/Time, High Bit Clear Ascii : '12/31/14   5:46:12 PM'


ERR            force ERRor

 ERR will force an error during the assembly process if the expression has a non-zero value :

            ERR    *-1/$9600      ; Error if PC > $9600

This may be used to ensure your program does not exceed a specific length.


> Building Multi-Segments Fixed-Address Files

Fixed-Address Binary files are used in 65c816 based systems that do not have an Operating System providing dynamic relocation : Apple IIgs running Prodos 8 or Custom OS (No Tools...), the SNES, various 65c816 CPU boards... These binary files are loaded in memory and executed at a fixed address (defined during the assembly process). The binary files contain the object code, nothing else (no header, no checksum, no padding...). If you are using an Apple IIgs running GS/OS, it is more convenient to create relocatable OMF programs (see next section).

For small projects, the programs can be smaller than 64 KB and fit in One Binary file. In this case, you don't need dedicated Merlin 32 syntax. Simply use the directives ORG and DSK (or LNK) in your Master source file to build such programs. Merlin 32 takes the Master source file as parameter, loads the other source files (inserted in the project using PUT directives) and assembles all these files as a One Fixed-Address Binary program :


If your target program is larger than 64 KB, it has to be split into several Binary Segments (each Segment is < 64 KB) and assembled & linked together to build the Binary files. This time, Merlin 32 takes a Link file as parameter. This Link file contains information about the several Segments (Master Source files path, Target Binary files names...). Merlin 32 loads all the files involved in the project (Link file, Master files, extra Sources files...) and assembles all of them as Several Fixed-Address Binary files :


The Link file format is very close to the Source files. It uses the same Label / Opcode / Operand / Comment line structure and accept full Line Comments like in the Source files (* and ;). The prefix is usually .S or .txt and the file is divided into several sections (one for the header + one per Binary Segment) :

*--------------------------*
*          COGITO          *
*                          *
*      Brutal  Deluxe      *
*--------------------------*

            TYP    $06            ; Binary File / Fixed Address


*--------------------------
*  Segment #1
*--------------------------

            ASM    Cogito.Main.s  ; Master Source File for Segment #1

            SNA    Main           ;   Segment Name ('Main')

*--------------------------
*  Segment #2
*--------------------------

            ASM    Cogito.Aux.s   ; Master Source File for Segment #2
            SNA    Aux            ;   Segment Name ('Aux')


*--------------------------

The directives found in the Link file are used to define the Binary files names and the Master Source files paths.

The following directives should be found at the top of the Link file. They should not appear more than one time in the Link file (
the TYP directive with value $06  is mandatory) :

TYP     :  GS/OS File Type

The value must be $06 (Binary file). This one byte value specifies the Type of the file under a Prodos file system. Such value is stored in the _FileInformation.txt file and can be used by Cadius during the transfer of the program to the disk image.

AUX     :  GS/OS File Auxiliary Type

This two bytes value specifies the Auxiliary Type of the file under a Prodos file system. Such value is stored in the _FileInformation.txt file and can be used by Cadius during the transfer of the program to the disk imageThe default  value is $0000.

The following directives are used to define the Segments properties. They should not appear more than one time for each Segment of the Link file. The ASM directive is mandatory, it defines the beginning of a new Segment and the end of the previous one :

ASM     :  Master source file path to be assembled

Defines the file name (or Path) of the Master source file for this Segment.

SNA     :  Segment Name = Binary File name

Specifies the name of the segment. If this directive is missing, the name of the segment is taken from the Operand of the DSK (or LNK) directive found in the Master source file.

The type of the program (Binary file or other) is defined by the GS/OS file Type. Because the output of the assembly process goes to a Windows file system, there is no way to set the file Type and AuxType. You have to set them manually while you are transferring the file back to a Prodos disk image (you can also take advantage of CADIUS facilities with its _FileInformation.txt file).

The Source files of a Segment in a Multi-Segment program look like the same than in Single-Segment program. They both have a ORG directive in the Master source file to define the code as Fixed-Address. In Multi-Segments source files, you can use 2 new directives, all of them used to refer to addresses located in another Segment of the program :

ENT :        defines a label as an ENTry label in a REL Segment. It is 'visible' from the other Segments of the program.
EXT :        defines a label EXTernal to the current REL Segment. It is located in another Segment of the program.

The following example shows how the source code from Segment #1 can call a sub-routine or read data located in Segment #2 :

*--------------------------
*  Segment #1 Master File
*--------------------------

            ORG     $030800       ; Fixed-Address code

            DSK     Main.l        ; Binary File Name 'Main'

            MX      %00           ; 16 bit

WaitForKey  EXT                   ; Define EXTernal Labels
SHRLineTab  EXT                   ; located in another Segment

            PHK
            PLB

            JSL     WaitForKey
; Wait for Key press

            LDX     #$0000
LOOP        LDAL    SHRLineTab,X
; Get Line Address
            JSR     ClearLine
            INX
            INX
            CPX     #400
            BNE     LOOP

            ...
*--------------------------
*  Segment #2 Master File
*--------------------------


ORG    $052000        ; Fixed-Address code
            DSK    Aux.l          ; Binary File Name 'Aux'

            MX     %00            ; 16 bit

WaitForKey  ENT                   ; Global Read Keyboard Subroutine
            LDAL   $00BFFF
            BPL    WaitForKey
            STAL   $00C010
            RTL

SHRLineTab  ENT
; Global SHR Line Address Table
]LINE       =      $2000
            LUP    200
            DA     ]LINE          ; Assembled as DA  $2000,$20A0,$2140,$21E0...
]LINE       =      ]LINE+$A0
            --^


We define in the Segment #2 two global labels, WaitForKey and SHRLineTab, so they can be called from another segment of the same program. We simply add the ENT (entry point for other segments) directive as Opcode of the Labels.

In Segment #1, where we need to refer to these Labels, we declare them as EXT (external to the current segment), at the beginning of the source code. So we can use them anywhere in the source code of Segment #1, but always using Long addressing mode (the two segments may be located in different memory banks).

You can use EXTernal labels in expressions, but always using forward reference (EXT Label + Constant), never backward (EXT Label - Constant). You are not authorized to build expression involving several labels, where at least one is External (EXT Label - local Label + 2).
You can use the Addressing Mode operators (< > ^) on them :

            LDAL    SHRLineTab+2,X

            PEA     <WaitForKey
            PEA     ^WaitForKey

Merlin 32 will assemble both segments separately and will search for EXTernal labels during the linkage (creation of several Binary files). If an EXTernal label can't be found in the other segments of the program, an error message will be displayed and the whole assembly process will fail. You won't get the Binary files created but you will get the output Text files (one per segment) created during the assembly step.


> Building Multi-Segments Fixed-Address Merged Files

This is about the same logic than the previous Multi-Segments Fixed-Address files except the fact than Several Segments may now be merged into One Binary file :



The Link file now defines the ORG Address of each Binary File and its Name (using the DSK directive)  :

*--------------------------*
*          COGITO          *
*                          *
*      Brutal  Deluxe      *
*--------------------------*

            TYP    $06            ; Binary File / Fixed Address


*--------------------------
*  File #1
*--------------------------

            DSK    MultiSeg       ; File Name for File #1
            ORG    $000800        ; ORG Address for File #1

*--------  Segment #1

            ASM    Cogito.Main.s  ; Master Source File for Segment #1
            SNA    Segment1       ;   Segment Name ('Segment1')

*--------  Segment #2

            ASM    Cogito.Aux.s   ; Master Source File for Segment #2
            SNA    Segment2       ;   Segment Name ('Segment2')


*--------------------------
*  File #2
*--------------------------

            DSK    Seg3           ; File Name for File #2
            ORG    $030300        ; ORG Address for File #2

*--------  Segment #3

            ASM    Cogito.Util.s  ; Master Source File for Segment #3

            SNA    Segment3       ;   Segment Name ('Segment3')


*--------------------------

The directives found in the Source files (REL, ORG, DSK...) are ignored and the directives defined in the Link file take precedence. If several Segments are merged into one binary files, the ORG Address of the first segment is defined by the ORG Directive of the Link file and the other Segments (of the same file) starts at the end of the previous Segment (ORG Address of Segment #N = 1 + ORG Address of Segment #N-1).  With one Link file, you can create as many Binary files as you want, using as many Segments as you want (within the limit of 64 KB per Binary file).


The following directives should be found at the top of the Link file. They should not appear more than one time in the Link file (the TYP directive with value $06  is mandatory) :

TYP     :  GS/OS File Type

The value must be $06 (Binary file). This one byte value specifies the Type of the file under a Prodos file system. Such value is stored in the _FileInformation.txt file and can be used by Cadius during the transfer of the program to the disk image.

AUX     :  GS/OS File Auxiliary Type

This two bytes value specifies the Auxiliary Type of the file under a Prodos file system. Such value is stored in the _FileInformation.txt file and can be used by Cadius during the transfer of the program to the disk imageThe default  value is $0000.

The following directives are used to define the Files properties. They should not appear more than one time for each File of the Link file. The DSK and the ORG directives are mandatory (DSK before ORG), they define the beginning of a new File and the end of the previous one :

DSK     :   Binary File name

Defines the File Name of the Binary file to be created.

ORG     :  ORG Address of the Binary file

Set the ORG Address of the first Segment of the file.

The following directives are used to define the Segments properties. They should not appear more than one time for each Segment of the Link file. The ASM directive is mandatory, it defines the beginning of a new Segment and the end of the previous one :

ASM     :  Master source file path to be assembled

Defines the file name (or Path) of the Master source file for this Segment.

SNA     :  Segment Name

Specifies the name of the segment. If this directive is missing, the name of the segment is taken from the Operand of the DSK (or LNK) directive found in the Master source file.

In Multi-Segments source files, you can use 2 new directives, all of them used to refer to addresses located in another Segment of the program :

ENT :        defines a label as an ENTry label in a REL Segment. It is 'visible' from the other Segments of the program.
EXT :        defines a label EXTernal to the current REL Segment. It is located in another Segment of the program.

The following example shows how the source code from Segment #1 can call a sub-routine or read data located in Segment #2 (there is no ORG directives in the source files because the ORG Address is set from the Link file):

*--------------------------
*  Segment #1 Master File
*--------------------------


            MX      %00           ; 16 bit

WaitForKey  EXT                   ; Define EXTernal Labels
SHRLineTab  EXT                   ; located in another Segment

            PHK
            PLB

            JSL     WaitForKey
; Wait for Key press

            LDX     #$0000
LOOP        LDAL    SHRLineTab,X
; Get Line Address
            JSR     ClearLine
            INX
            INX
            CPX     #400
            BNE     LOOP

            ...
*--------------------------
*  Segment #2 Master File
*--------------------------


            MX     %00            ; 16 bit

WaitForKey  ENT                   ; Global Read Keyboard Subroutine
            LDAL   $00BFFF
            BPL    WaitForKey
            STAL   $00C010
            RTL

SHRLineTab  ENT
; Global SHR Line Address Table
]LINE       =      $2000
            LUP    200
            DA     ]LINE          ; Assembled as DA  $2000,$20A0,$2140,$21E0...
]LINE       =      ]LINE+$A0
            --^


We define in the Segment #2 two global labels, WaitForKey and SHRLineTab, so they can be called from another segment of the same program. We simply add the ENT (entry point for other segments) directive as Opcode of the Labels.

In Segment #1, where we need to refer to these Labels, we declare them as EXT (external to the current segment), at the beginning of the source code. So we can use them anywhere in the source code of Segment #1, but always using Long addressing mode if the two segments are not merged into the same Binary file (the two segments may be located in different memory banks).

You can use EXTernal labels in expressions, but always using forward reference (EXT Label + Constant), never backward (EXT Label - Constant). You are not authorized to build expression involving several labels, where at least one is External (EXT Label - local Label + 2).
You can use the Addressing Mode operators (< > ^) on them :

            LDAL    SHRLineTab+2,X

            PEA     <WaitForKey
            PEA     ^WaitForKey

Merlin 32 will assemble both segments separately and will search for EXTernal labels during the linkage (creation of several Binary files). If an EXTernal label can't be found in the other segments of the program, an error message will be displayed and the whole assembly process will fail. You won't get the Binary files created but you will get the output Text files (one per segment) created during the assembly step.


> Building Multi-Segments OMF Files


OMF files are the core of any executable code on the Apple IIgs system (S16, Exe, CDA, NDA, FST, PIF, Library, Tool...). Each OMF file contains one or more segments. Each segment in an OMF file contains a set of records that provide relocation information and contain code or data. The System Loader loads the code parts in memory and process the information found in the relocation dictionary to patch the addresses of the code. The code located in Segment #1 is executed. Other segments may contains Code or Data.

For small projects, the executables can be smaller than 64 KB and fit in One-Segment OMF files. In this case, you don't need dedicated Merlin 32 syntax. Simply use the directives REL and LNK in your Master source file to build such executables. Merlin 32 takes the Master source file as parameter, loads the other source files (inserted in the project using PUT directives) and assembles all these files as a Single-Segment OMF program :


If your target program is larger than 64 KB, it has to be splited into several OMF Segments (each OMF Segment is < 64 KB) and assembled & linked together to build the executable. This time, Merlin 32 takes a Link file as parameter. This Link file contains information about the several Segments (Master Source file path, Segment properties, Target Program name...). Merlin 32 loads all the files involved in the project
(Link file, Master files, extra Sources files...) and assembles all of them as a Multi-Segments OMF program :


The Link file format is very close to the Source files. It uses the same Label / Opcode / Operand / Comment line structure and accept full Line Comments like in the Source files (* and ;). The prefix is usually .S or .txt and the file is divided into several sections (one for the Program + one per OMF Segment) :

*--------------------------*
*          COGITO          *
*                          *
*      Brutal  Deluxe      *
*--------------------------*

            DSK    Cogito         ; Program File Name is 'Cogito'
            TYP    $B3            ; S16, GS/OS Application
            XPL                   ; Add the ~ExpressLoad Segment

*--------------------------
*  Segment #1
*--------------------------

            ASM    Cogito.Main.s  ; Master Source File for Segment #1
            DS     0              ;   Number of bytes of 0's to add at the end of the Segment
            KND    #$1100         ;   Type and Attributes (
$11=Static+Bank Relative,$00=Code)
            ALI    None           ;   Boundary Alignment (None)
            LNA    Cogito.S16     ;   Load Name ('Cogito.S16')
            SNA    Main           ;   Segment Name ('Main')

*--------------------------
*  Segment #2
*--------------------------

            ASM    Cogito.Aux.s   ; Master Source File for Segment #2
            DS     0              ;   Number of bytes of 0's to add at the end of the Segment
            KND    #$1100         ;   Type and Attributes (
$11=Static+Bank Relative,$00=Code)
            ALI    None           ;   Boundary Alignment (None)
            LNA    Cogito.S16     ;   Load Name ('Cogito.S16')
            SNA    Aux            ;   Segment Name ('Aux')


*--------------------------

The directives found in the Link file are used to define the Program file name and the OMF Segments properties. Some OMF Segment general information like NUMLEN (length, in bytes, of a number field), VERSION (version number of the OMF), REVISION (revision number of the OMF) or NUMSEX (order of the bytes in a number field) receive constant fixed values. There are no directive in Merlin 32 Link file to change their values. Refer to the Apple IIgs GS/OS Reference book (Appendix F : Object Module Format) for full details about data structure definitions and naming convention used in OMF Segments.

The following directives should be found at the top of the Link file. They should not appear more than one time in the Link file (
the DSK directive is mandatory) :

DSK     :  Name of the Program file

Defines the name (or Path) of the output program file. A valid Prodos File Name is 15 characters long (max), starts with a letter (A-Z or a-z), may contains Numerics (0-9) or a period (.).

TYP     :  GS/OS File Type

This one byte value specifies the Type of the file under a Prodos file system. Such value is stored in the _FileInformation.txt file and can be used by Cadius during the transfer of the program to the disk image. The default  value is $B3 (GS/OS application).

Some common GS/OS file types related to program files are listed below :
$B2    LIB    Library
$B3    S16    GS/OS or ProDOS 16 application
$B4    RTL    Run-time library
$B5    EXE    Shell application
$B6    PIF    Permanent initialization
$B7    TIF    Temporary Initialization
$B8    NDA    New desk accessory
$B9    CDA    Classic desk accessory
$BA    TOL    Tool set file
$BB    DVR    Apple IIgs Device Driver File
$BC    LDF    Generic load file
$BD    FST    GS/OS file system translator

AUX     :  GS/OS File Auxiliary Type

This two bytes value specifies the Auxiliary Type of the file under a Prodos file system. Such value is stored in the _FileInformation.txt file and can be used by Cadius during the transfer of the program to the disk imageThe default  value is $0000.

XPL     :  Add ExpressLoad Segment

If set, it asks Merlin 32 to add a Segment named ~ExpressLoad at first position in the OMF file. This Segment is a summary of all the following Segments available in the OMF file. It is used by GS/OS to speed up the load of the program.

The following directives are used to define the Segment properties. They should not appear more than one time for each Segment of the Link file. The ASM directive is mandatory, it defines the beginning of a new Segment and the end of the previous one :

ASM     :  Master source file path to be assembled

Defines the file name (or Path) of the Master source file for this Segment.

DS         : Number of zero bytes to reserve at the end of the file

Specifies the number of bytes of 0's to add  to the end of the Segment. This can be used in an object Segment instead of a large block of zeros at the end of a Segment.
The default value is
0.

KND     :  Type and Attributes

This two bytes value specifies the type and the attributes of the Segment. A Segment can have only one type byte but any combination of attributes.

The low byte defines the type :
$00    Code
$01    Data
$02    Jump-Table segment
$04    Pathname segment
$08    Library dictionary segment
$10    Initialization segment
$12    Direct-page/stack segment

The high byte defines the attributes list :
%0000_0001    Bit 0 : If 1 = Bank-relative segment
%0000_0010    Bit 1 : If 1 = Skip segment
%0000_0100    Bit 2 : If 1 = Reload segment
%0000_1000    Bit 3 : If 1 = Absolute-bank segment
%0001_0000    Bit 4 : If 0 = Can be loaded in special memory
%0010_0000    Bit 5 : If 1 = Position independent
%0100_0000    Bit 6 : If 1 = Private
%1000_0000    Bit 7 : If 0 = Static, If 1 = Dynamic

The default value is
#$1100 (Static+Bank Relative,Code). You can't have more than one Jump-Table or Direct-page/stack segment per program file.

ALI       :  Boundary Alignment

Indicates the boundary on which the segment must be aligned.

The possible values are :
BANK : The segment is to be aligned on a Bank boundary  ($10000)
PAGE : The segment is to be aligned on a Page boundary  (  $100)
NONE : No alignment is needed                           (    $0)

The default value is
NONE.

BSZ     :  Bank Size

Number indicating the maximum memory-bank size for then segment.

For Code segments, the value is $10000 (64 KB). For Data segments, the value is between $00 and $10000 (64 KB). A value of 0 indicates that the segment can cross bank boundaries.

The default value is
$10000 (64 KB) .

ORG     :  Origin

Indicates the absolute address at which the segment is to be loaded in memory.

A value of 0 indicates that the segment is relocatable and can be loaded anywhere in memory.

The default value is
0.

LNA     :  Load Name

Specifies the name of the load segment that will contain the code generated by the linker for this segment. This is usually left empty. The maximum length is 10 bytes.

SNA     :  Segment Name

Specifies the name of the segment. If this directive is missing, the name of the segment is taken from the Operand of the DSK (or LNK) directive found in the Master source file.

The type of the program (GS/OS application, Shell application, Permanent Init file, New desk accessory, Classic desk accessory, Tool set file...) is defined by the GS/OS file Type. Because the output of the assembly process goes to a Windows file system, there is no way to set the file Type and AuxType. You have to set them manually while you are transfering the file back to a Prodos disk image (you can also take advantage of CADIUS facilities with its _FileInformation.txt file).

The Source files of a Segment in a Multi-Segment program look like the same than in Single-Segment program. They both have a REL directive in the Master source file to define the code as relocatable. In Multi-Segments source files, you can use 2 new directives, all of them used to refer to addresses located in another Segment of the program :

ENT :        defines a label as an ENTry label in a REL Segment. It is 'visible' from the other Segments of the program.
EXT :        defines a label EXTernal to the current REL Segment. It is located in another Segment of the program.

The following example shows how the source code from Segment #1 can call a sub-routine or read data located in Segment #2 :

*--------------------------
*  Segment #1 Master File
*--------------------------

            REL                   ; The code is relocatable

            DSK     Main.l        ; Segment Name 'Main'

            MX      %00           ; 16 bit

WaitForKey  EXT                   ; Define EXTernal Labels
SHRLineTab  EXT                   ; located in another Segment

            PHK
            PLB

            JSL     WaitForKey
; Wait for Key press

            LDX     #$0000
LOOP        LDAL    SHRLineTab,X
; Get Line Address
            JSR     ClearLine
            INX
            INX
            CPX     #400
            BNE     LOOP

            ...
*--------------------------
*  Segment #2 Master File
*--------------------------

            REL
The code is relocatable
            DSK    Aux.l          ; Segment Name 'Aux'

            MX     %00            ; 16 bit

WaitForKey  ENT                   ; Global Read Keyboard Subroutine
            LDAL   $00BFFF
            BPL    WaitForKey
            STAL   $00C010
            RTL

SHRLineTab  ENT
; Global SHR Line Address Table
]LINE       =      $2000
            LUP    200
            DA     ]LINE          ; Assembled as DA  $2000,$20A0,$2140,$21E0...
]LINE       =      ]LINE+$A0
            --^

We define in the Segment #2 two global labels, WaitForKey and SHRLineTab, so they can be called from another segment of the same program. We simply add the ENT (entry point for oher segments) directive as Opcode of the Labels.

In Segment #1, where we need to refer to these Labels, we declare them as EXT (external to the current segment), at the beginning of the source code. So we can use them anywhere in the source code of Segment #1, but always using Long addressing mode (the two segments may be located in different memory banks).

You can use EXTernal labels in expressions, but always using forward reference (EXT Label + Constant), never backward (EXT Label - Constant). You are not authorized to build expression involving several labels, where at least one is External (EXT Label - local Label + 2).
You can use the Adressing Mode operators (< > ^) on them :

            LDAL    SHRLineTab+2,X

            PEA     <WaitForKey
            PEA     ^WaitForKey

Merlin 32 will assemble both segments separately and will search for EXTernal labels during the linkage (creation of the multi-segments OMF file). If an EXTernal label can't be found in the other
segments of the program, an error message will be displayed and the whole assembly process will fail. You won't get the program file created but you will get the output Text files (one per segment) created during the assembly step.


> Unsupported Merlin 16+ Commands

Even if we have tried to be as accurate as possible with Merlin 16+ syntax, there are a few commands or directives not supported (=ignored) in Merlin 32. The first set of commands which are not supported are the ones linked to the Merlin 16+ editor, the interaction during assembly or the formatting of the listing :

AST :         send a line of ASTerisks
CYC :         calcule and print CYCle times for the code
DAT :         DATe stamp assembly listing
EXP :         macro EXPand control
KBD :         define label from KeyBoarD
LST :          LiSTing control
LSTDO :    LiSTDO OFF areas of code
PAG :         new PAGe
PAU :         PAUse
SW :           SWeet 16 opcodes
TTL :          define TiTLe heading
SKP :         SKiP lines
TR :            TRuncate control
EXD :        define a label as Direct Page EXternal to the current REL Segment. You can use EXT instead of EXD.

The other thing we have decided not to support are the way the string may be delimited in Merlin 16+. In Merlin 32, the two different delimiters for a string are
' (simple quote  = high bit clear) and " (double quotes = high bit set). In Merlin 16+, you can use virtually any character as delimiter. Here are few examples of valid Hello World strings in Merlin 16+ :

- "Hello World"
-
'Hello World'
-
#Hello World#
-
@Hello World@
-
!Hello World!
-
(Hello World(
-
ZHello WorldZ
...

Depending on the delimiters, the result string had the high bit clear (', (, ), + and ?) or set (", #, @, !, ...). In order to simplify the reading of the source code, we have decided to support only simple quote and double quotes as valid strings delimiters.

The last part where Merlin 32 is different from Merlin 16+ is in the format of the intermediate object files. Merlin 16+ assembles source code files (
*.S) into object files (*.L) and link them to build the final program file. Merlin 32 does everything in one operation (assemble + link), so there is no intermediate file available. Merlin 32 can't use existing object files coming from Merlin 16+.You need to provide all the Source files to build a program file. For Multi-Segments OMF file, you will have to write a dedicated Link file. The one previously used with LINKER.XL in Merlin 16+ can't be used with Merlin 32. Most of the Linker directives of Merlin 16+ (LKV, VER, SAV, TYP, LIB, END, OVR...) are not supported by Merlin 32 which uses its own syntax.


> F.A.Q

The same source files are assembled without any error with Merlin 16+ but raise errors with Merlin 32. Is Merlin 32 not supposed to be fully compatible with Merlin 16+ syntax ?

Merlin 32 syntax is strict and you can face situations where Merlin 16+ lets you assemble invalid source files without displaying errors. For example, Merlin 16+ truncates the Opcodes to 3 characters. So LDAL, LDAd, LDAp end up as LDA and Merlin 16+ accept them. If you try to use invalid Opcodes such as LDAd with Merlin 32, you get immediately an error. You can easily fix such issues by using only valid Opcodes. Other problems can occur with local Labels starting with ]. Forward references to Local Labels are not authorized. A local Label starting with ] has to be defined before beeing used. But Merlin 16+ won't complain if you make a forward branching to a local label starting with ] if the label is the only one of the source file. Merlin 32 is more strict and enforce the 'no forward reference' rule, so you get an error. You can fix this issue by replacing your local label by a global Label. The same source code may be assembled in adifferent ways by Merlin 16+ and Merlin 32 if EQU values are involved :

BIRD    EQU   #7

        LDA   BIRD

    -  Merlin 16+ assembles the previous source code as :     LDA   $7      ; Page Direct Address $07
    -  Merlin 32 assembles the previous source code as :       LDA   #7      ; Constant

Merlin 16+ evaluates the EQU very early in the assembling process and replace the value (BIRD) in the Operand with its value (7). The # is lost, so the LDA  7 is interpreted as a LDA  $7 = Direct Page. Merlin 32 evaluates the expressions at the end so the # is kept and the LDA becomes a LDA  #7 = Constant value.

As we have seen with previous examples, there are some differences that may raise errors with Merlin 32, but with light modifications (LDA   #BIRD instead of LDA  BIRD), you can have a source code valid for both environments. Check also the unsupported commands list and think about the String delimiters which are more restrictive on Merlin 32.  Always use the Output file to check the object code generated by Merlin 32 from your source file.

Is the Source code of Merlin 32 available
somewhere ?

The Source code is freely available in the Zip file (see download section).

It is currently packaged as a Visual Studio 2010 Project set of files. The tool is only using C Language, so you can recompile it with any other C ANSI compiler (gcc...).

What about a Macintosh or Linux release ?

Everything has be done to make Merlin 32 as independent as possible from the Operating System (command line utility, no UI). The source code is written in C Ansi and the only Operating Systems calls have been isolated in a specific file. The first release is available on Windows environment because it is the one used to create the software.

  The Macintosh and Linux ports are available as Binary files (make sure to apply the chmod 755 command to tun the file as executable). If the binary file is not working on your configuration, simply download gcc for Linux or Mac OS X and re-compile the project (make -f linux_makefile). The source files are available in the Zip file and it is the same for the 3 operating systems supported (Windows / Linux / Mac OS X). The current surce files are Intel only. The PowerPC support will be added soon.


> References

Merlin 16+ documentation by Glen Bredon, Roger Wagner Publishing
Apple IIgs GS/OS Reference, Appendix F : Object Module Format version 2.1
Programming the 65816 - Including the 6502, 65C02 and 65802 by Western Design Center
Le IIgs Epluché
written by D.BAR, D. DELAY, Y. DURANT, J.L SCHMITT and E. WEYLAND
ORCA/M 2.0
documentation by Mike Westerfield and Phil Montoya, Byte Works Inc


> Download

Merlin 32 v1.0 for Windows 32 & 64 bits / Linux 64 bits / MacOS X 10.5 + Source Code                     Merlin 32 for Windows
Merlin 32 64-bit universal v1.0 for x86 and M1 Mac computers            Merlin 32 for Mac
